Ortofon - 2M Red Replacement Stylus

Ortofon - 2M Red Replacement Stylus

$92.00 USD
$92.00 USD
Sale Sold out
Shipping Policy.

Couldn't load pickup availability

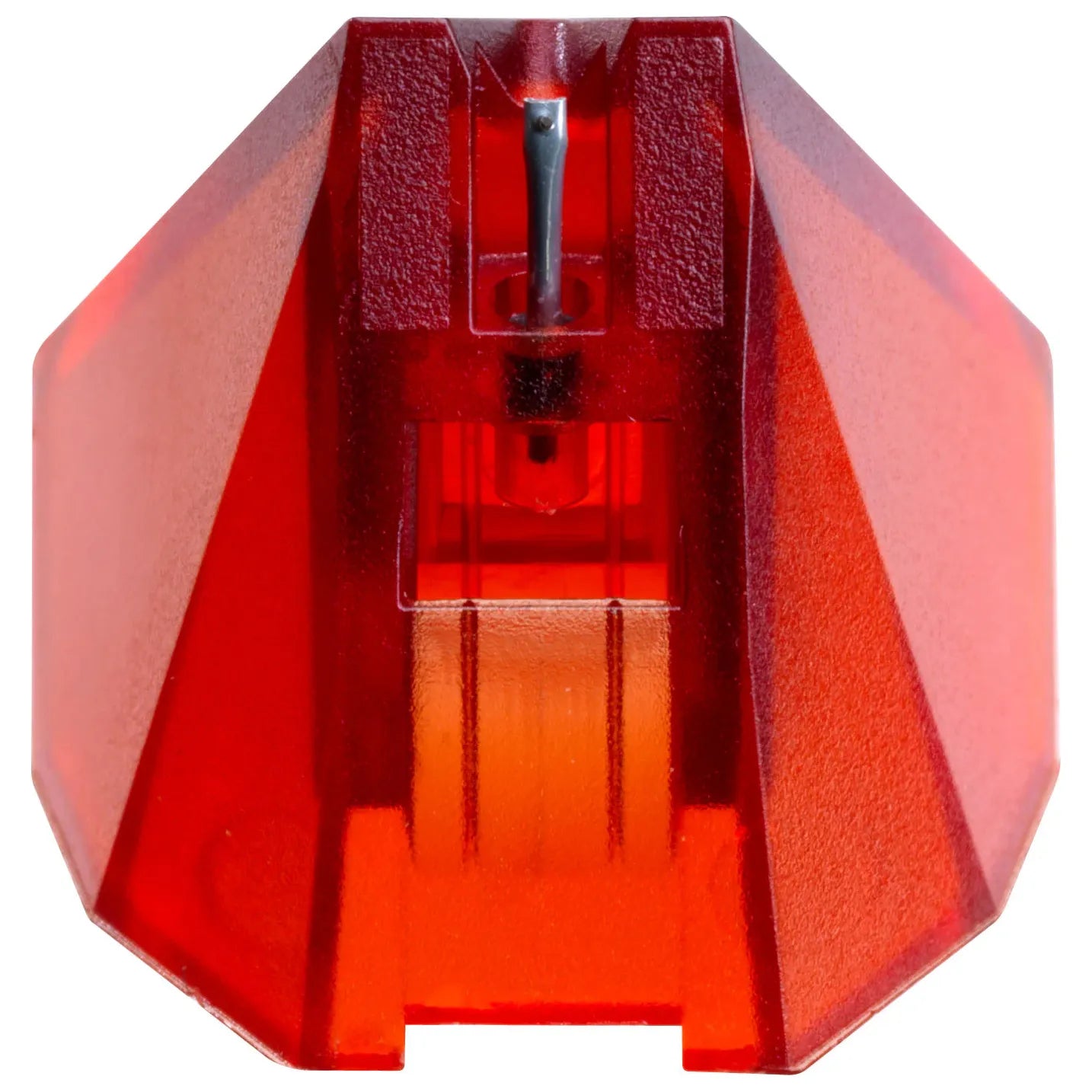

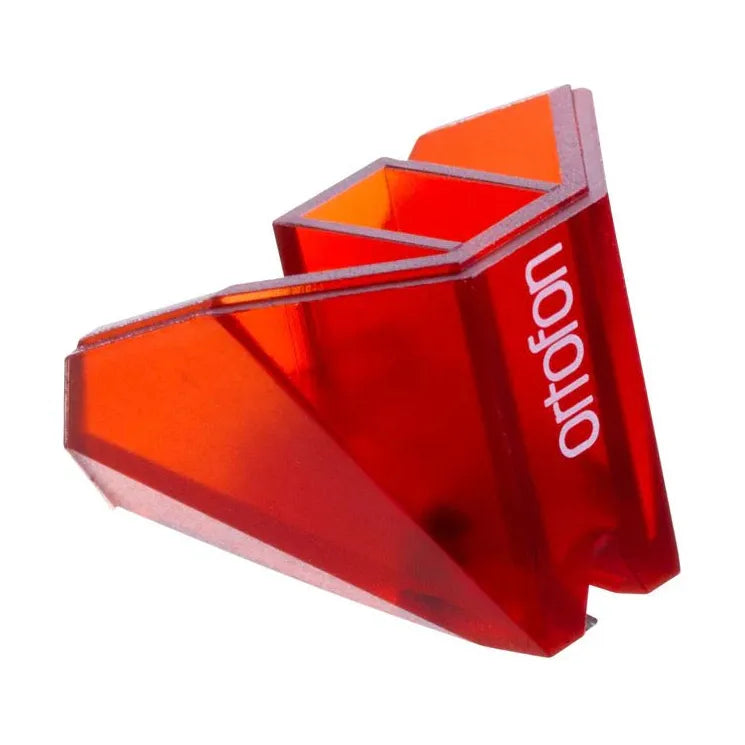

Stylus 2M Red

With the Stylus 2M Red you will hear the music come to life on its own terms. It is like taking a step into music itself. This is our entry-level cartridge in the series, but what an entry.

Stylus 2M Red is a replacement stylus for Ortofon 2M Red

Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance.

2M styli interchangeability

The Stylus 2M Red is recommended for following cartridges:

Specifications

  • Frequency response 20 Hz - 20 kHz
    3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force
    70 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Stylus type
    Elliptical
  • Stylus tip radius
    r/R 8/18 µm
  • Tracking force range
    1.6-2.0 g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
  • Equivalent stylus tip mass
    0.5 mg
  • Stylus colour
    Red
UPC: 5705796180015 View full details
