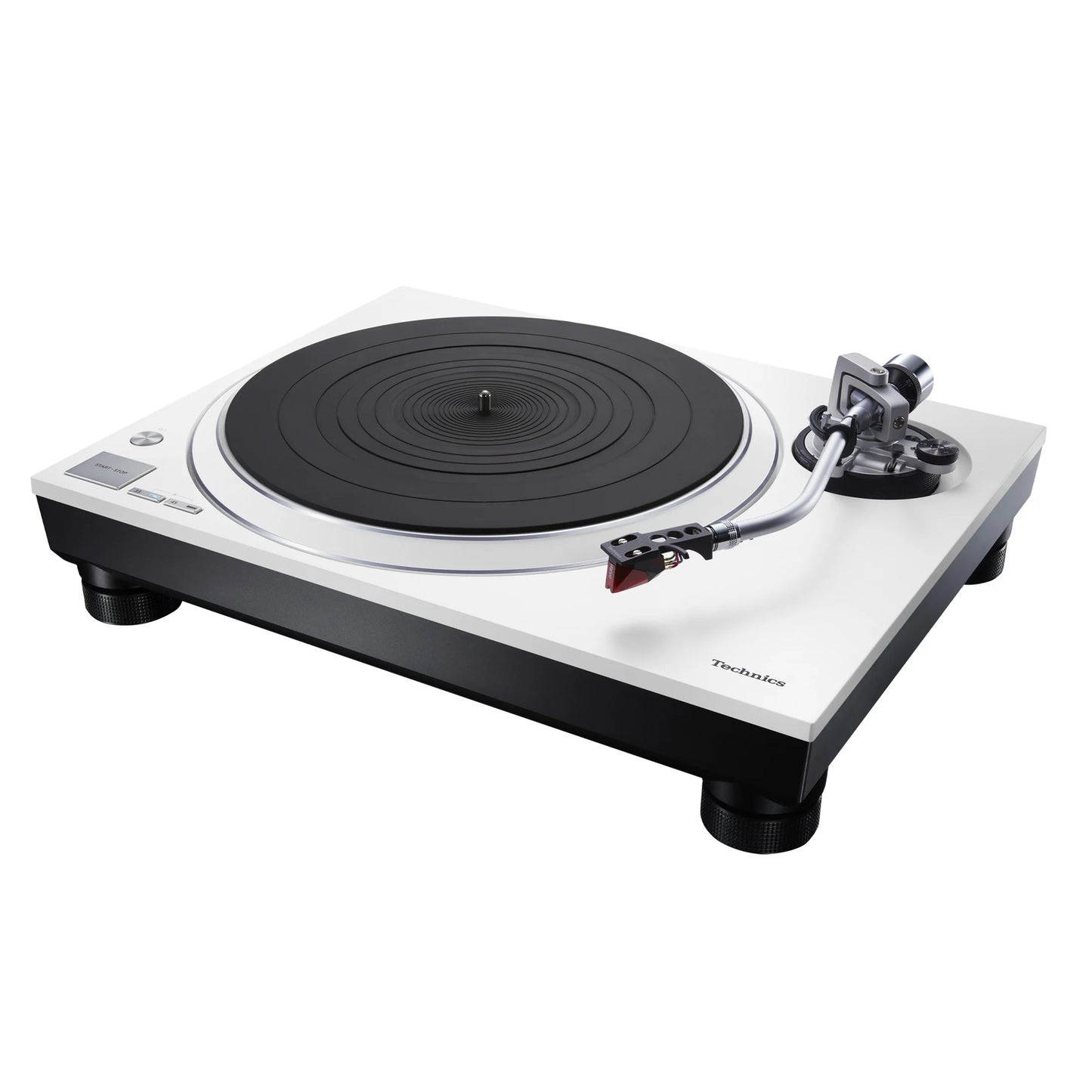

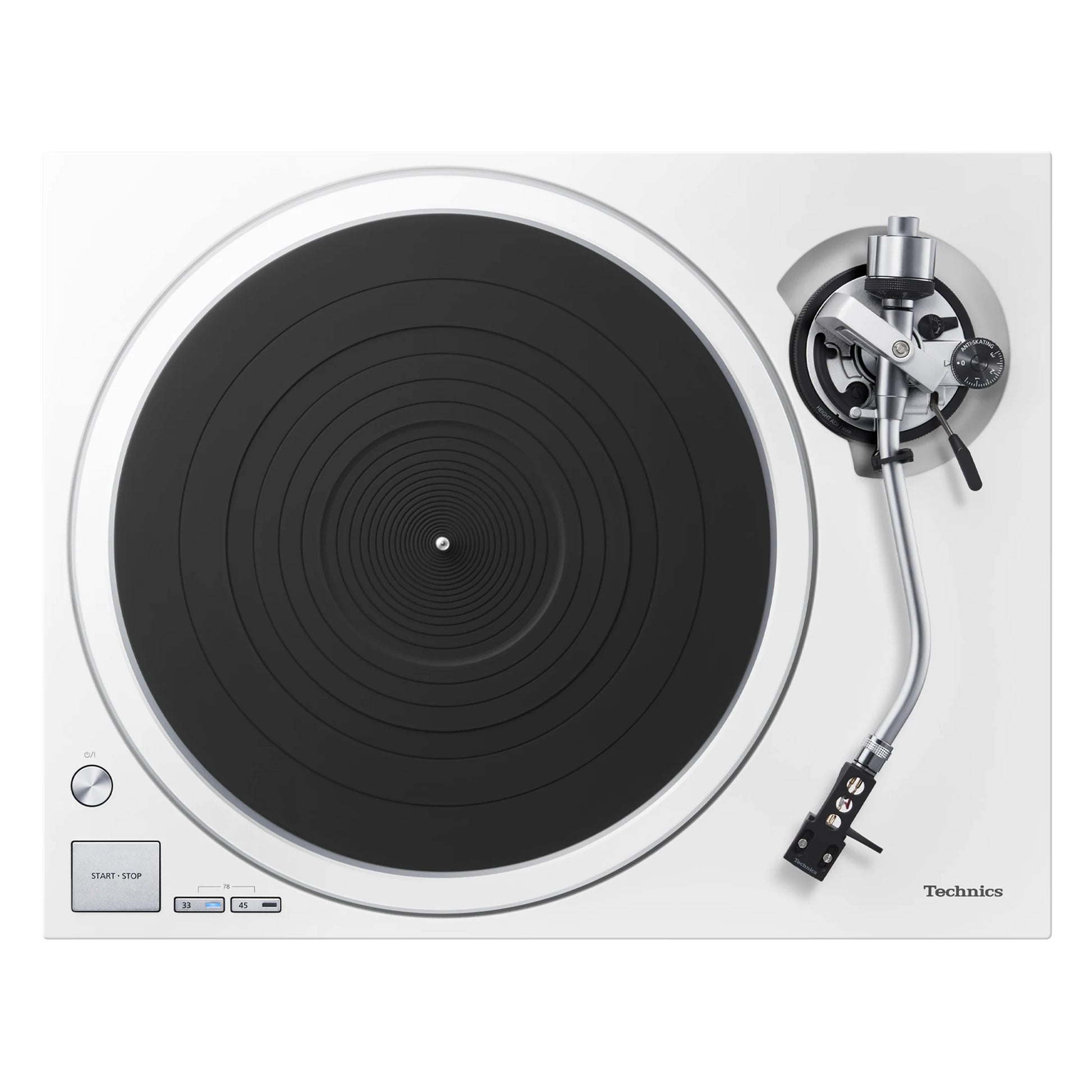

Technics - SL-1500C Direct Drive Turntable
Technics - SL-1500C Direct Drive Turntable
Couldn't load pickup availability
A complete direct drive turntable system, the SL-1500C inherits Technics' high-end sound quality concept and adds a host of original Technics technologies, such as a coreless direct drive motor and high-sensitivity tonearm.
The SL-1500C inherits Technic’s high-end sound quality concept and adds a host of original Technics technologies, such as a coreless direct drive motor and high-sensitivity tonearm. To simplify the playing of analog records, the built-in Phono EQ connects to a wide variety of devices. The SL-1500C also comes equipped with a high-quality Ortofon 2M Red phono cartridge. The SL-1500C is a complete turntable system designed for a wide range of users, even outside of strictly dedicated audio enthusiasts.
- The Latest Coreless Direct Drive Motor Achieves High-precision Stable Rotation
- Complete Turntable with a Built-in Phono Equalizer and Cartridge
- Equipped with an Auto Lifter Function That Allows You to Enjoy Playing Records More Comfortably
- Simple Design with Functional Beauty
|
General |
|
|
Power Supply |
AC 120 V, 60 Hz |
|
Power Consumption |
8 W, Approx. 0.2W (Standby) |
|
Dimensions (W x H x D) |
453 x 169 x 372 mm (17-27/32 × 6-21/32 × 14-21/32 inch) |
|
Weight |
Approx. 9.9 kg (Approx. 21.2 lbs) |
|
Accessories |
Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Head shell, Cartridge(ortofon 2M Red), PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual |
|
Terminals |
|
|
Audio Output |
PHONO (Pin Jack) x 1 EARTH TERMINAL x 1 LINE (Pin Jack) x 1 |
|
Tonearm Section |
|
|
Type |
Universal Static Balance |
|
Effective Length |
230 mm (9-1/16") |
|
Overhang |
15 mm (19/32") |
|
Tracking Error Angle |
Within 2° 32' (at the outer groove of 30 cm (12") record), Within 0° 32' (at the inner groove of 30 cm (12") record) |
|
Applicable Cartridge Weight Range |
(without auxiliary weight) 5.6 - 12.0 g 14.3 - 20.7 g (including head shell) (with auxiliary weight) 10.0 - 16.4 g 18.7 - 25.1 g (including head shell) |
|
Head Shell Terminal Lug |
1.2 mmφ 4-pin terminal lug |
|
Turntable Section |
|
|
Type |
Direct Drive Manual Turntable |
|
Turntable Speeds |
33-1/3, 45 and 78 r/min |
|
Starting Torque |
0.18 N·m / 1.8 kg·cm (1.56 lbs-in) |
|
Build-up Characteristics |
0.7 s. from standstill to 33 1/3 rpm |
|
Wow And Flutter |
0.025 % W.R.M.S. |
|
Turntable Platter |
Aluminium diecast Diameter : 332 mm (13-5/64 inch) Weight : Approx. 2.0 kg (4.5 lbs) (Including Turntable Sheet) |
