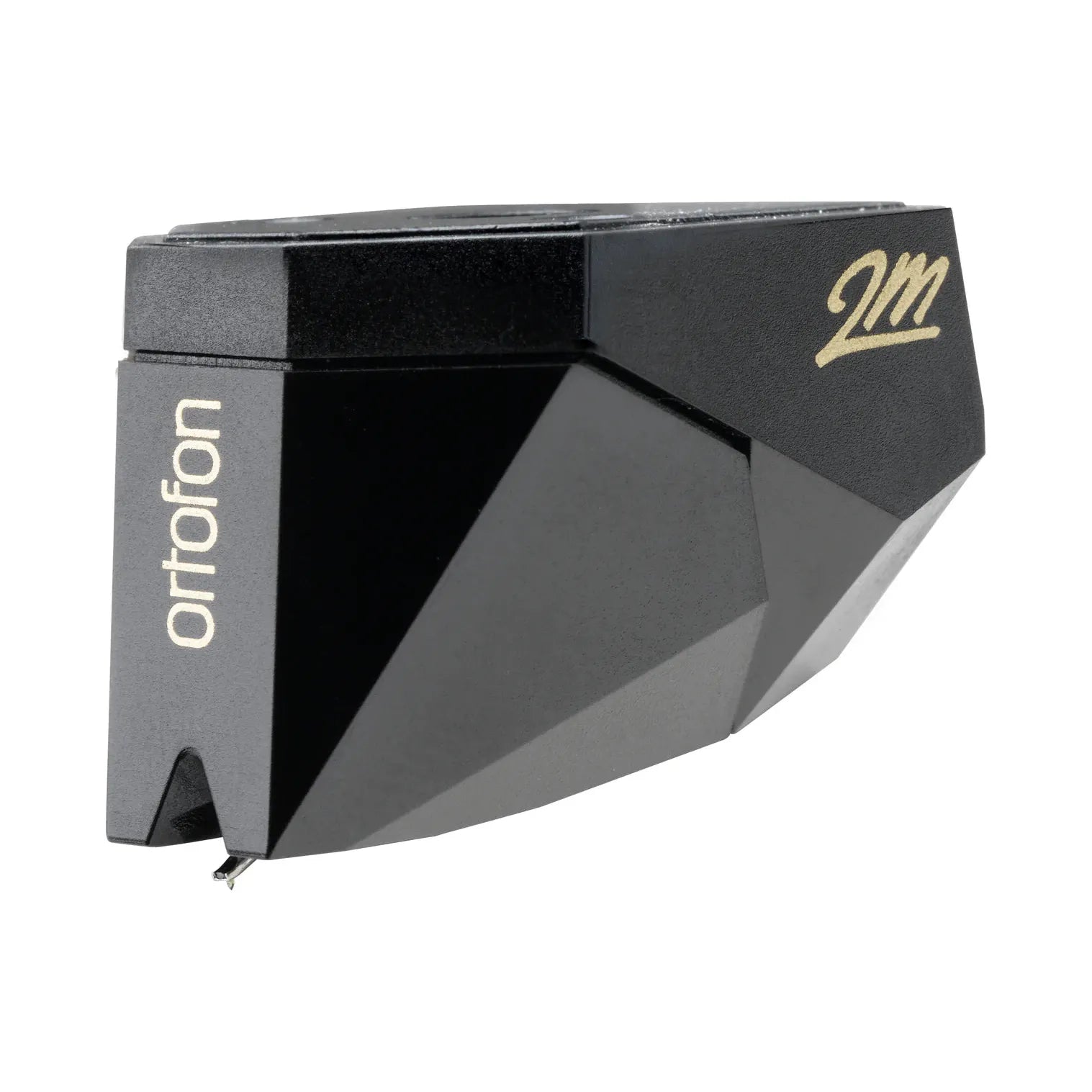

Ortofon - 2M Black MM Phono Cartridge

Ortofon - 2M Black MM Phono Cartridge

$695.00 USD
$695.00 USD
Sale Sold out
Shipping Policy.

2M Black

The 2M Black is the flagship of the series, and it lives up to this with flying colors. You can hear every little detail in the music from every part of the spectrum. Just the way the artist wanted you to. This is for those who want to sense the presence of the artist in the room when they listen to their records.

Feeling the presence of the artist

Accuracy level

With the 2M Black, you will not only hear the music, but you will sense the presence of the artist in the room while listening to your favorite records.

Shibata diamond

Stylus

The 2M Black is graced with a Shibata diamond that gives it contact with the groove like nothing else. The slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.

Split pole pin technology

Features

The 2M Black uses a special engine featuring Ortofon’s very own invention: split pole pins upgraded with a silver-plated copper wire.

Universal fit

Compatibility

The 2M Series is designed for easy cartridge mounting, weight, and size to fit the most common turntables today.

The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

Specifications

  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    5 mV
  • Channel seperation at 1 kHz
    26 dB
  • Channel seperation at 15 kHz
    15 dB
  • Frequency response 20 Hz - 20 kHz
    2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force
    80 µm
  • Compliance, dynamic, lateral
    22 µm/mN
  • Stylus type
    Nude Shibata
  • Stylus tip radius
    r/R 6/50 µm
  • Tracking force range
    1.4-1.7 g (14-17 mN)
  • Tracking force, recommended
    1.5 g (15 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.2 kOhm
  • Cartridge colour
    Black/Black
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    630 mH
  • Recommended load capacitance
    150-300 pF



UPC: 5705796080049 View full details
