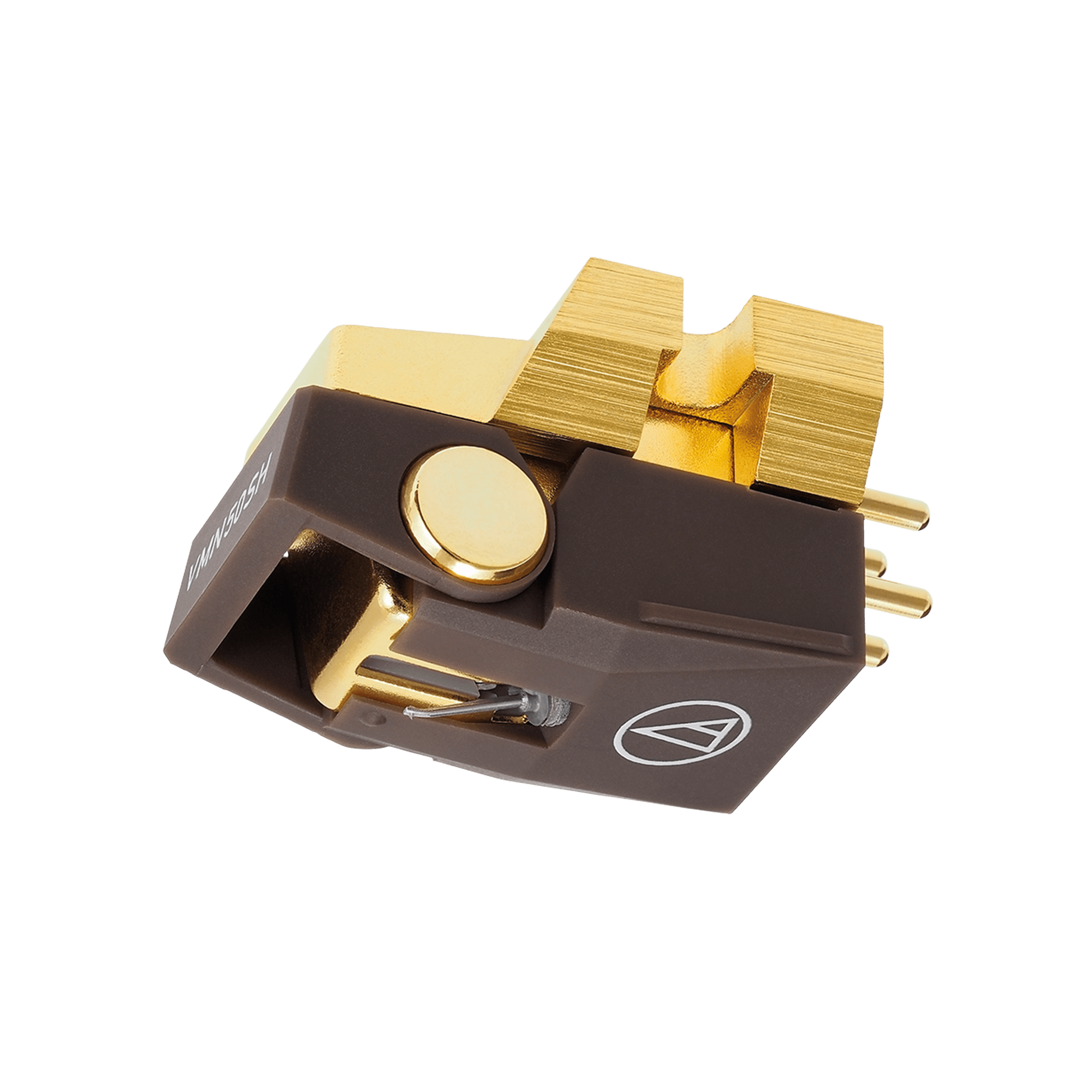

Audio-Technica - VM750SH Dual Moving Magnet Cartridge

Audio-Technica - VM750SH Dual Moving Magnet Cartridge

Regular price $449.00 USD
Regular price Sale price $449.00 USD
Sale Sold out
Shipping Policy.

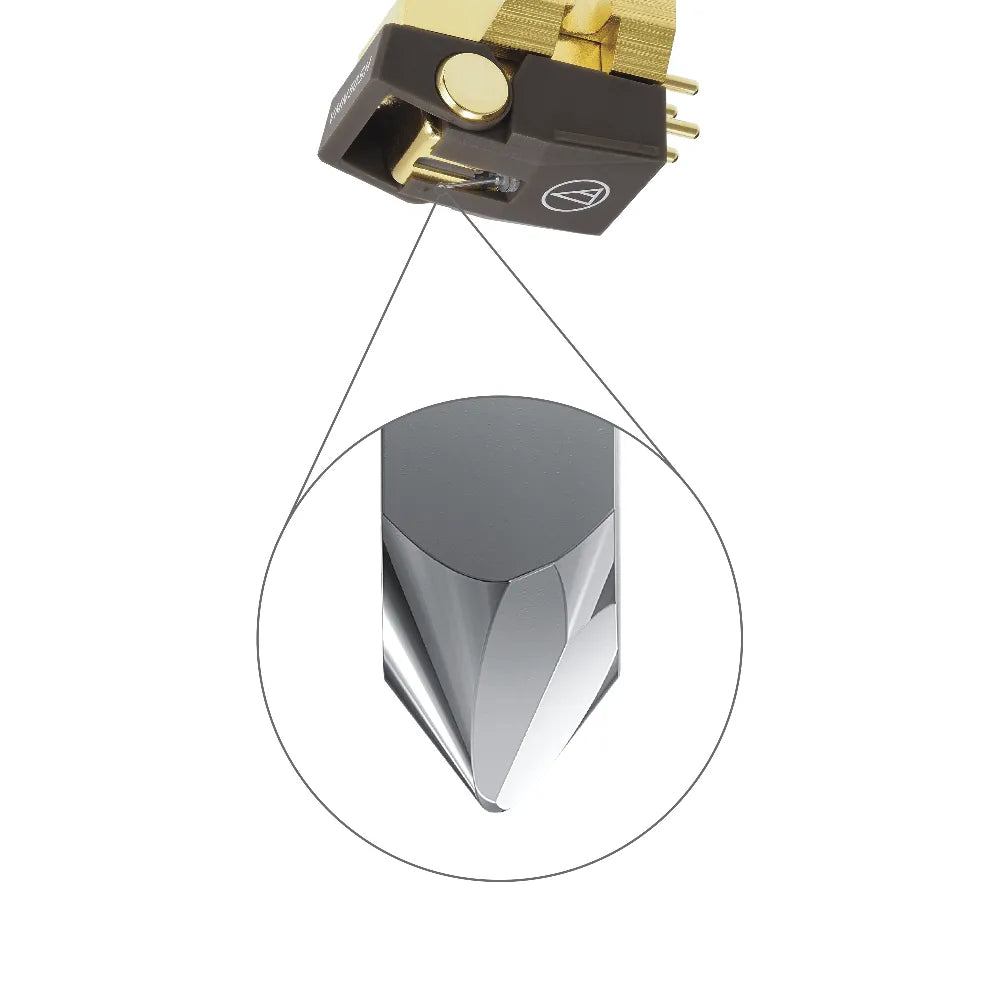

The VM750SH Shibata stylus cartridge is a premier 700 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM750SH is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s Shibata stylus provides greater surface contact with the record groove than an elliptical stylus does, resulting in the pickup of ultra-high frequencies with less groove stress and distortion. Includes mounting hardware.

Features

  • VM dual magnet cartridge with Shibata stylus
  • Aluminum tapered cantilever

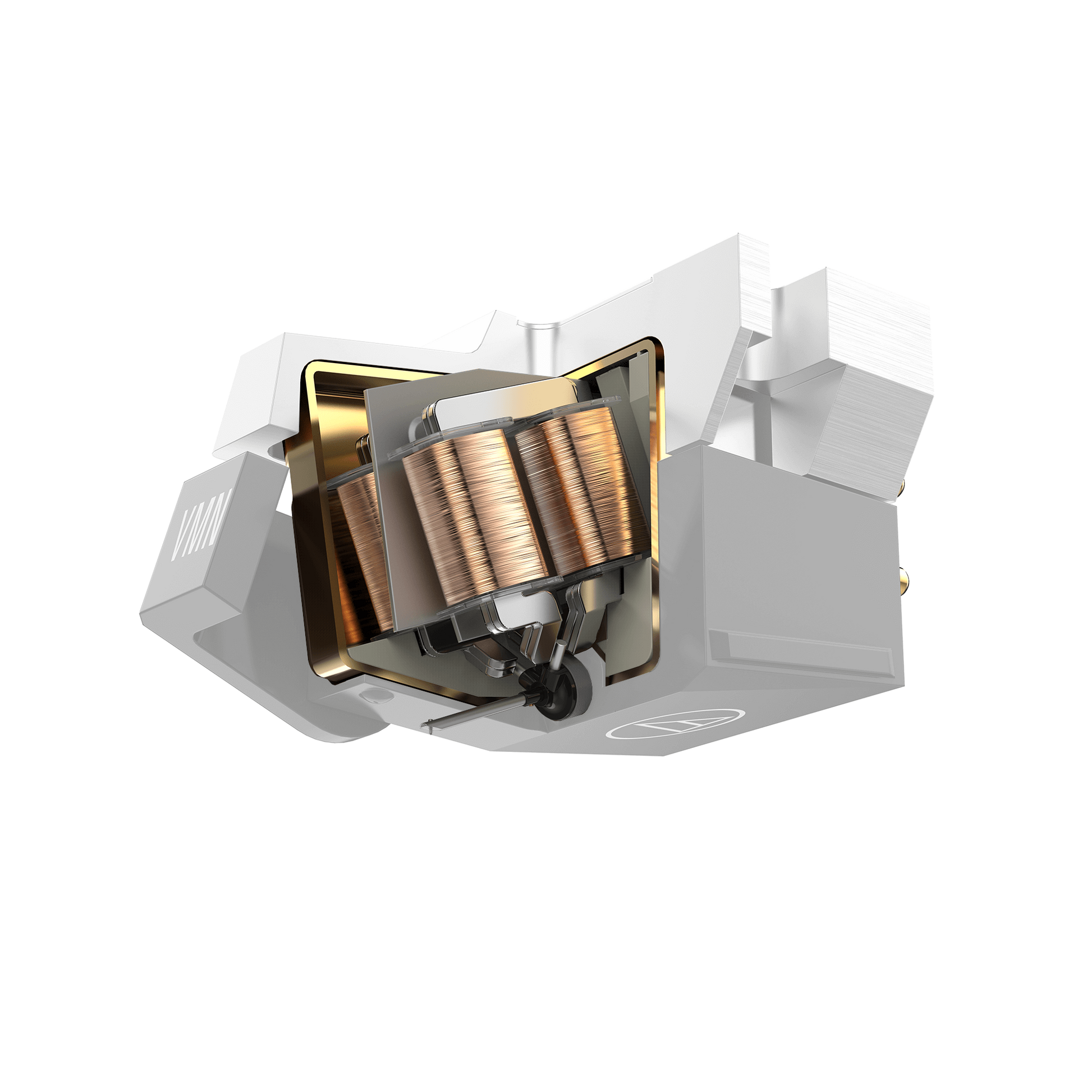

  • Paratoroidal coils improve generating efficiency
  • Center shield plate between the left and right channels reduces crosstalk
  • Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield

Technical Specifications

Frequency Response 20-27,000 Hz
Channel Separation 30 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Nude square shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 2,700 ohms (1 kHz)
DC Resistance 800 ohms
Coil Inductance 460 mH (1 kHz)
Recommended load capacitance 100-200 pF
Output 4.0 mV (at 1 kHz, 5 cm/sec)
Channel Balance 1.0 dB (1 kHz)
Stylus Shape 2.7 x 0.26 mil Shibata
Cantilever Aluminum tapered pipe
Static Compliance 40 x 10-6 cm/dyne
Dynamic Compliance 10 x 10-6 cm/dyne (100 Hz)
Mount Half-inch
Weight 8.0 g (0.3 oz)
Dimensions 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

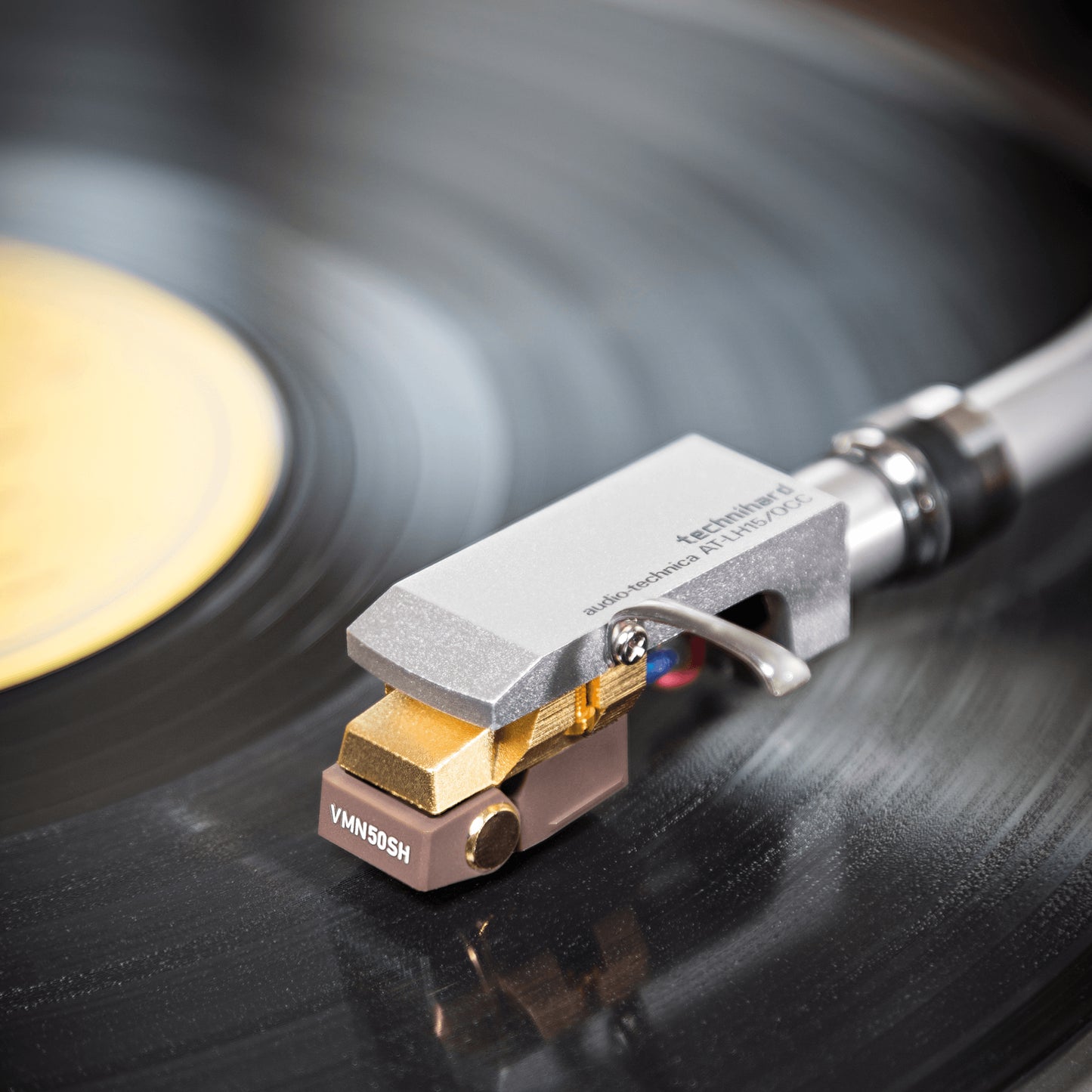

Replacement Stylus VMN50SH
Accessories Included Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver, brush, lead wire set
