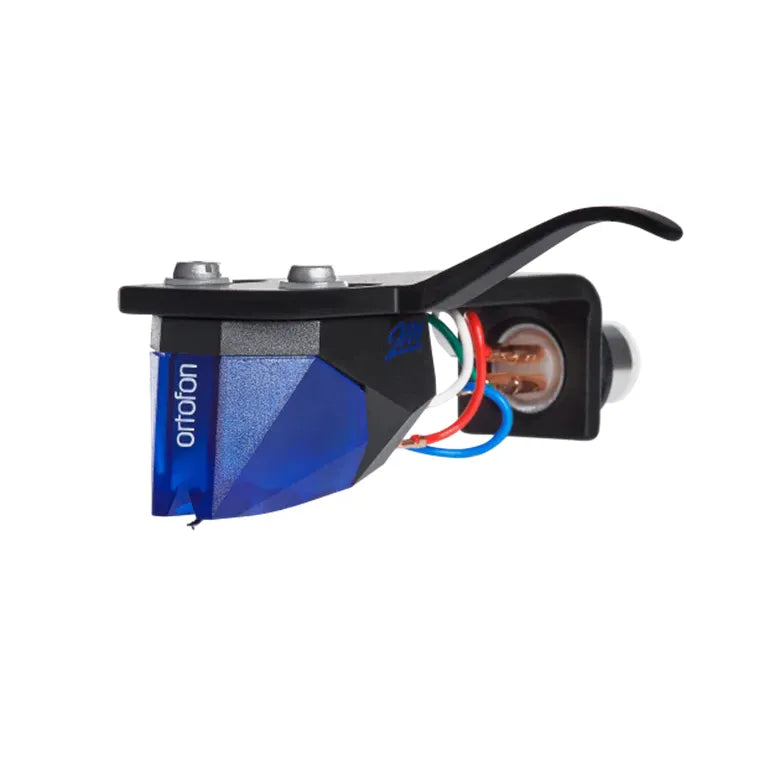

Ortofon - 2M Blue MM Cartridge Mounted on SH-4 Headshell

Ortofon - 2M Blue MM Cartridge Mounted on SH-4 Headshell

$299.00 USD
$299.00 USD
Sale Sold out
Shipping Policy.

2M Blue Premounted

The goal of any cartridge should be to reproduce sound as closely to the artist's vision as possible, and the 2M Blue takes you further on this journey toward authenticity. The 2M Blue is mounted on our classic SH-4 headshell, making the setup process easy.

Travelling to the moment the music was recorded

Accuracy level

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M Blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

It's never been easier to experience

Compatibility

Experience the convenience of the 2M Blue Premounted – a smart and refined choice for those seeking straightforward installation and effortless replacement on their S-shaped tonearm. The SH-4 headshell's resilience and stability are enhanced by its slender and refined design. A robust yet lightweight construction, coupled with an ergonomic, extended finger lift, ensures easy handling and pickup.

Nude Elliptical stylus

Stylus

The Nude diamond is cut in an Elliptical shape, and when it hits the groove it is like travelling through both space and time to the very moment the music was recorded.

High level of sonic accuracy

Output

The engine provides an increased output of 5.5 mV optimized sound reproduction and a high level of sonic accuracy. The 2M Blue adds more dynamics and resolution, sounds more open, and reproduces more details compared to the 2M Red model.

Specifications

  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    5.5 mV
  • Channel seperation at 1 kHz
    25 dB
  • Channel seperation at 15 kHz
    15 dB
  • Frequency response 20 Hz - 20 kHz
    2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force
    80 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Stylus type
    Nude Elliptical
  • Stylus tip radius
    r/R 8/18 µm
  • Tracking force range
    1.6-2.0 g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.3 kOhm
  • Cartridge colour
    Black/Blue
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    700 mH
  • Recommended load capacitance
    150-300 pF
UPC: 5705796080483 View full details
