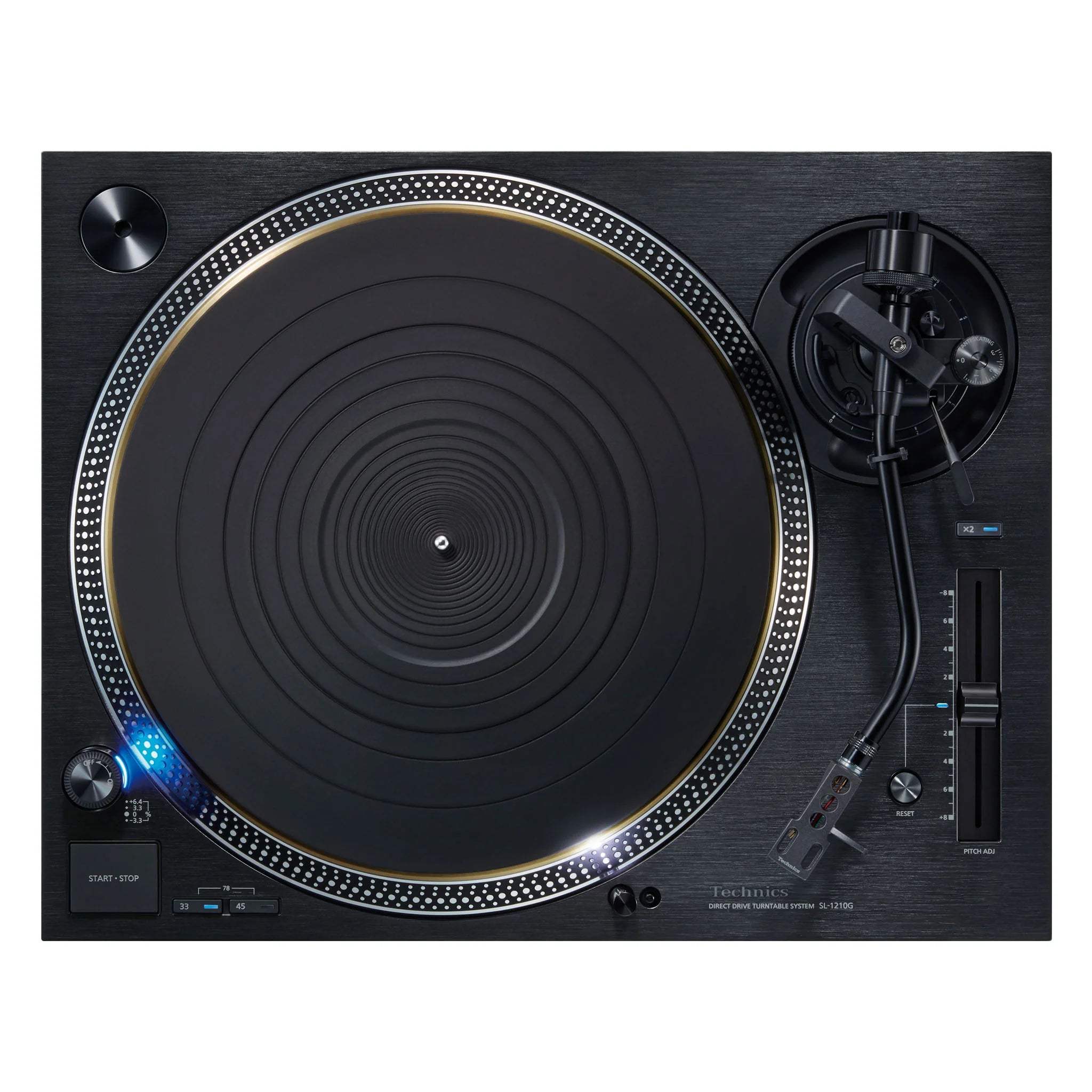

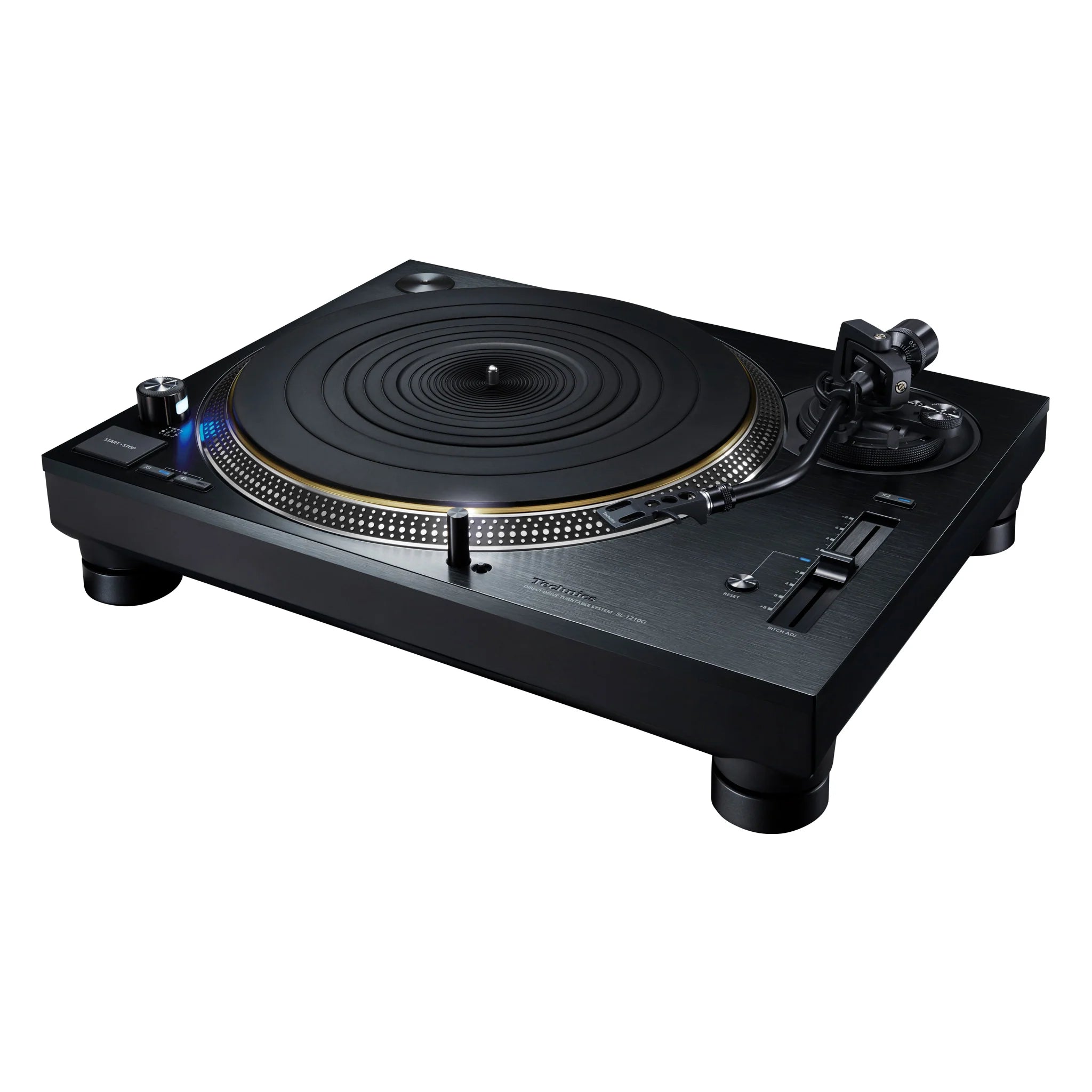

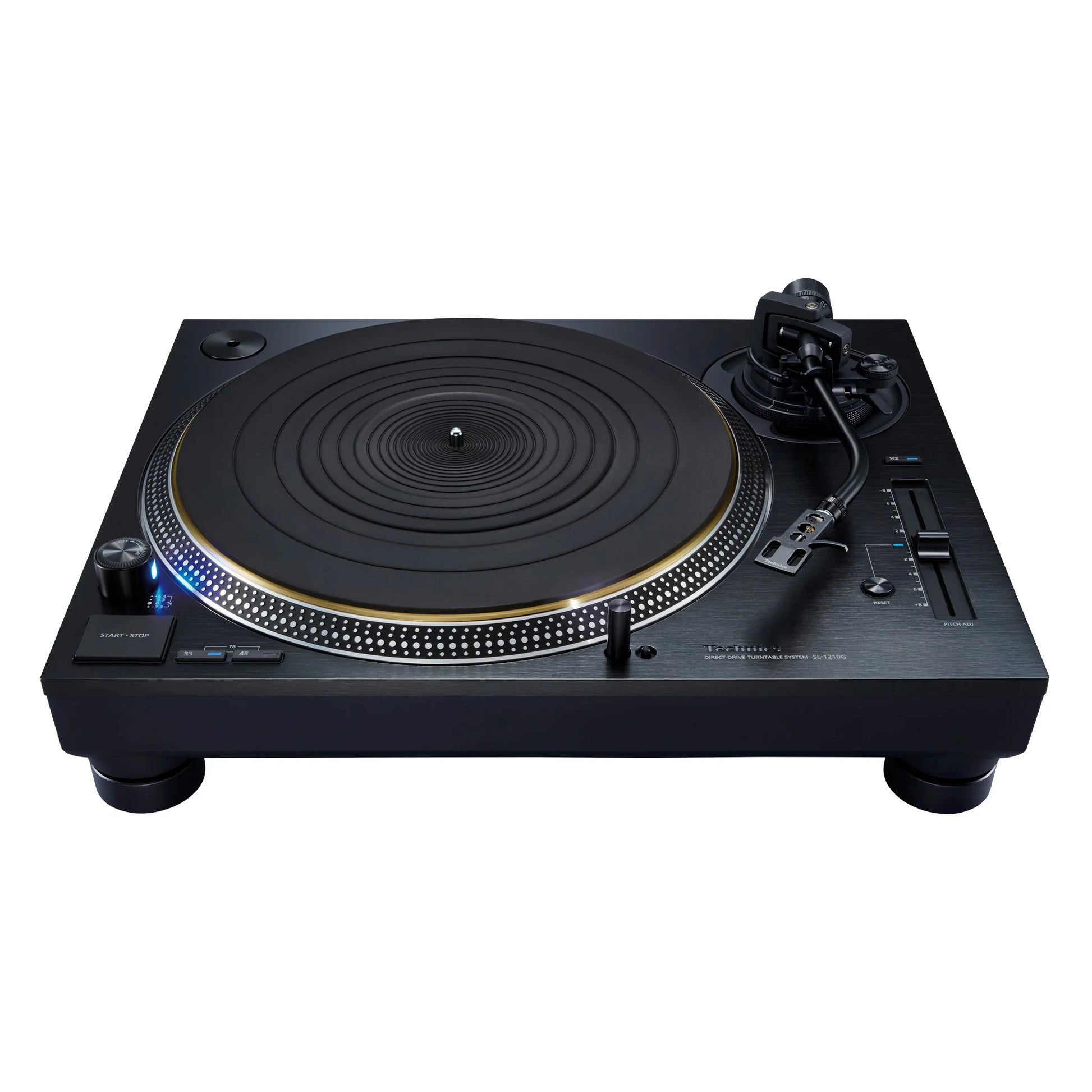

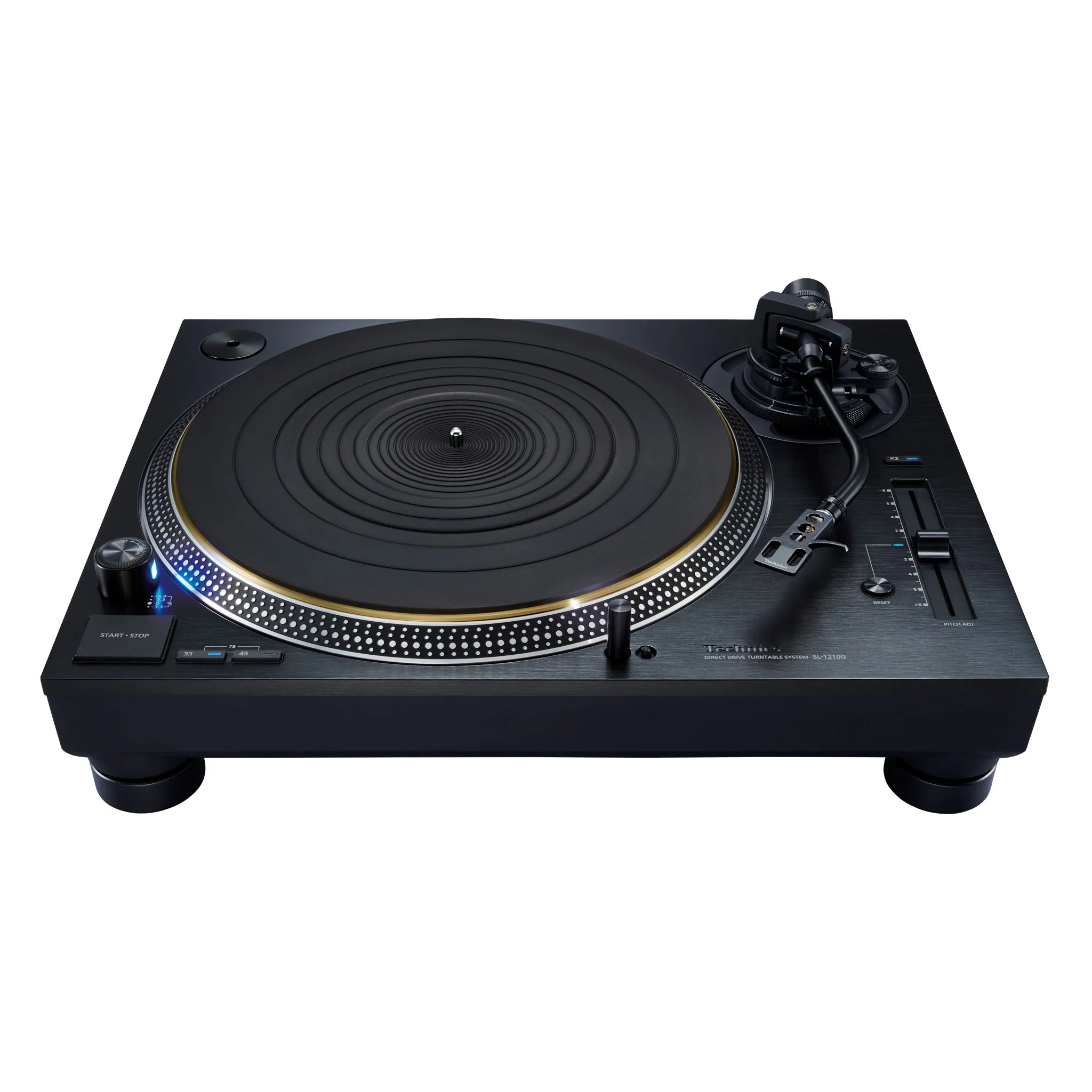

Technics - Direct Drive Turntable System SL-1210G
Technics - Direct Drive Turntable System SL-1210G
Couldn't load pickup availability
Redefining the reference in direct-drive turntables for the modern age, the SL-1210G features the latest technologies to solve issues such as cogging. Includes a newly developed coreless direct-drive motor with greatly increased precision by incorporating Blu-ray Disc technology for rotation control.
Created by Technics in pursuit of true analog record sound, rather than nostalgia, the SL-1210G includes the latest technologies to solve issues involved with direct-drive systems, such as cogging. The SL-1210G includes a newly developed coreless direct-drive motor with greatly increased precision by incorporating Blu-ray Disc technology for rotation control. This cutting-edge direct-drive system will surpass previous direct-drive systems. It is not a reproduction but innovation. We are redefining the reference in direct-drive turntables for the modern age.
- Newly developed coreless direct-drive motor with no iron core eliminates cogging
- Advanced motor control technology for high starting torque and high-speed stability.
- Three-layer turntable construction with deadening rubber to eliminate unnecessary resonance
- The balance of the turntable is adjusted at the factory using specialized high-precision equipment
- High-sensitivity tonearm with lightweight magnesium for a high damping effect
|
General |
|
|
Power Supply |
AC120 V, 60 Hz |
|
Power Consumption |
14 W Approx. 0.2W (Standby) |
|
Dimensions (W x H x D) |
17-27/32 x 6-13/16 x 14-21/32 inch |
|
Weight |
Approx. 39.7lbs |
|
Accessories |
Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight(S), Auxiliary weight(L), Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Screw set for turntable, Owner's Manual |
|
Terminals |
|
|
Audio Output |
PHONO (Pin Jack) x 1, EARTH TERMINAL x 1 |
|
Tonearm Section |
|
|
Type |
Universal Static Balance |
|
Effective Length |
230mm (9-1/16") |
|
Overhang |
15mm (19/32") |
|
Tracking Error Angle |
Within 2° 32' (at the outer groove of 30cm(12") record), Within 0° 32' (at the inner groove of 30cm(12") record) |
|
Offset Angle |
22° |
|
Arm-height Adjustment Range |
0 - 6 mm |
|
Stylus Pressure Adjustment Range |
0 - 4 g (direct reading) |
|
Head Shell Weight |
Approx. 7.6 g |
|
Applicable Cartridge Weight Range |
(without auxiliary weight) 5.6 - 12.0g 14.3 - 20.7g (including headshell) (with small auxiliary weight) 10.0 - 16.4g 18.7 - 25.1g (including headshell) (with large auxiliary weight) 14.3 - 19.8g 23.0 - 28.5g (including headshell) |
|
Cartridge Mounting Dimension |
JIS 12.7 mm Interval |
|
Head Shell Terminal Lug |
1.2 mm φ 4-pin Terminal Lug |
|
Turntable Section |
|
|
Type |
Direct Drive Manual Turntable |
|
Turntable Speeds |
33 1/3, 45, 78 rpm |
|
Adjust Range |
±8%, ±16% |
|
Starting Torque |
3.3 kg·cm (2.8 lb-in) |
|
Build-up Characteristics |
0.7 s. from standstill to 33 1/3 r/min |
|
Wow And Flutter |
0.025% W.R.M.S. (JIS C5521) |
|
Rumble |
78dB (IEC 98A Weighted) |
|
Turntable Platter |
Brass and Aluminum diecast combined, Diameter 332mm (13-5/64"), Weight：About 3.6kg (7 15/16 lb) (Including rubber sheet) |
