Ortofon - 2M Black LVB 250 MM Cartridge Mounted on SH-4 Headshell
Ortofon - 2M Black LVB 250 MM Cartridge Mounted on SH-4 Headshell
2M Black LVB 250 Premounted
The 2M Black LVB 250 upgrades the great build of the 2M Blackwith a boron cantilever and our very own Nano Tube suspension system. The result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.

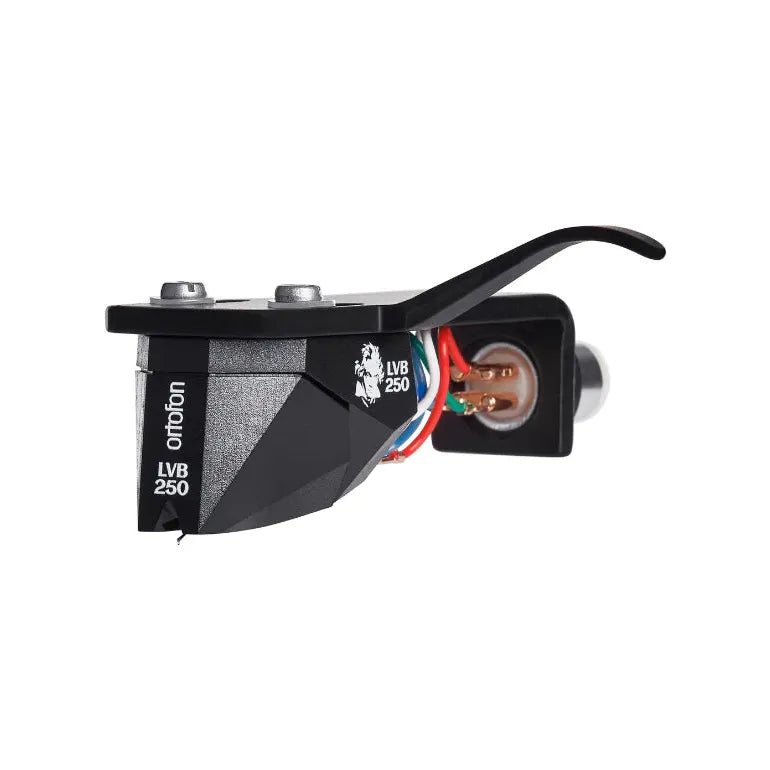

The 2M Black is mounted on our classic SH-4 headshell.
Like having the artist in the room with you
Accuracy level
The 2M Black is an amazing cartridge and, by many, considered the ultimate in moving magnet. So, why would we attempt to create something even better? Because perfection runs in our blood.
The 2M Black LVB 250 upgrades the great build of the 2M Black, and the result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.
Nude Shibata diamond on a boron cantilever
Stylus
The 2M Black LVB 250 upgrades the great build of the 2M Black with a Nude Shibata diamond on a boron cantilever. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness.
The Nude Shibata stylus’ slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the highest frequencies.
Multi Wall Carbon Nano Tubes (MWCNT)
Features
To attain an optimal interaction between compliance and damping, a new rubber compound for the suspension system has been developed. The new rubber compound formula is based on the Multi Wall Carbon Nano Tubes' (MWCNT) highly efficient nano filler. The new MWCNT-based compound offers desirable mechanical properties, which ensure better damping and improve the overall performance of the cartridge.
Specifications
-
Channel balance at 1 kHz1 dB
-
Output voltage at 1 kHz, 5cm/sec5 mV
-
Channel seperation at 1 kHz27 dB
-
Channel seperation at 15 kHz15 dB
-
Frequency response 20 Hz - 20 kHz+ 2 / - 1 dB
-
Tracking ability at 315Hz at recommended tracking force80 µm
-
Compliance, dynamic, lateral22 µm/mN
-
Stylus typeNude Shibata
-
Stylus tip radiusr/R 6/50 µm
-
Tracking force range1.5-1.7 g (15-17 mN)
-
Tracking force, recommended1.6 g (16 mN)
-
Tracking angle20°
-
Internal impedance, DC resistance1.2 kOhm
-
Cartridge colourBlack/Black
-
Cartridge weight7.2 g
-
Premounted cartridge weight16.7 g
-
Recommended load resistance47 kOhm
-
Internal inductance630 mH
-
Recommended load capacitance150-300 pF
