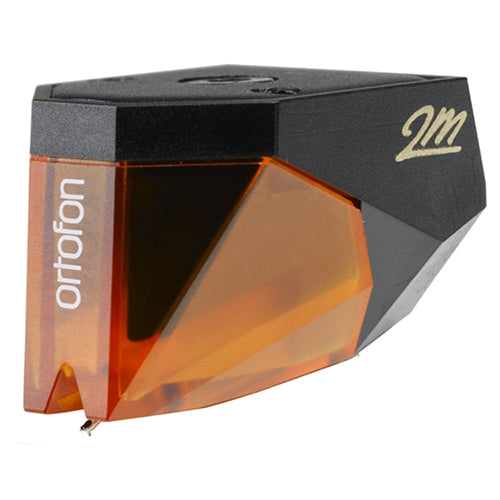

Ortofon - 2M Bronze MM Phono Cartridge

Ortofon - 2M Bronze MM Phono Cartridge

$429.00 USD
$499.00 USD $429.00 USD
Sale Sold out
Shipping Policy.

2M Bronze

The 2M Bronze is designed to give the music a whole new dimension of precision. Listening to your records with the 2M Bronze is like hearing them for the first time, and you get to fall in love with the songs all over again. That is what hi-fi means to us, and that is what you get with the 2M Bronze.

Rediscover your records

Accuracy level

To us, hi-fi is more than a fancy label. High fidelity is the goal of everything we do. The 2M Bronze is designed to give the music a whole new dimension of precision. Listening to your records with the 2M Bronze is like hearing them for the first time, and you get to fall in love with the songs all over again. That is what hi-fi means to us, and that is what you get with the 2M Bronze.

Nude Fine Line

Stylus

The 2M Bronze features a Nude Fine Line diamond particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information.

Split pole pin technology

Features

The 2M Bronze uses a special engine featuring Ortofon’s very own invention: split pole pins upgraded with a silver-plated copper wire.

Universal fit

Compatibility

The 2M Series is designed for easy cartridge mounting, weight, and size to fit the most common turntables today.

The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

Specifications

  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    5 mV
  • Channel seperation at 1 kHz
    26 dB
  • Channel seperation at 15 kHz
    15 dB
  • Frequency response 20 Hz - 20 kHz
    2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force
    80 µm
  • Compliance, dynamic, lateral
    22 µm/mN
  • Stylus type
    Nude Fine Line
  • Stylus tip radius
    r/R 8/40 µm
  • Tracking force range
    1.4-1.7 g (14-17 mN)
  • Tracking force, recommended
    1.5 g (15 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.2 kOhm
  • Cartridge colour
    Black/Bronze
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    630 mH
  • Recommended load capacitance
    150-300 pF
UPC: 5705796080032 View full details
