Ortofon - 2M Mono Cartridge Mounted on SH-4 Headshell

Ortofon - 2M Mono Cartridge Mounted on SH-4 Headshell

$485.00 USD
$485.00 USD
Sale Sold out
Shipping Policy.

2M Mono Premounted

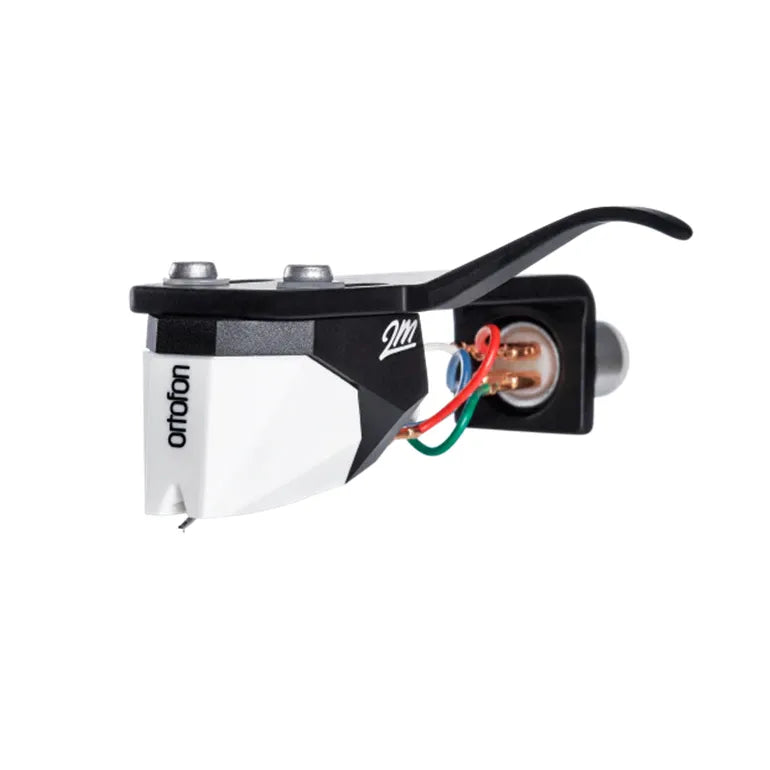

Step into an Era of Authenticity with the 2M Mono Premounted cartridge, thoughtfully crafted to perfectly suit the intricacies of playing mono microgroove LP vinyl records. The 2M Mono Premounted is mounted on a classic Ortofon SH-4 headshell, making setup with your turntable easy. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life.

It’s never been easier to experience

Compatibility

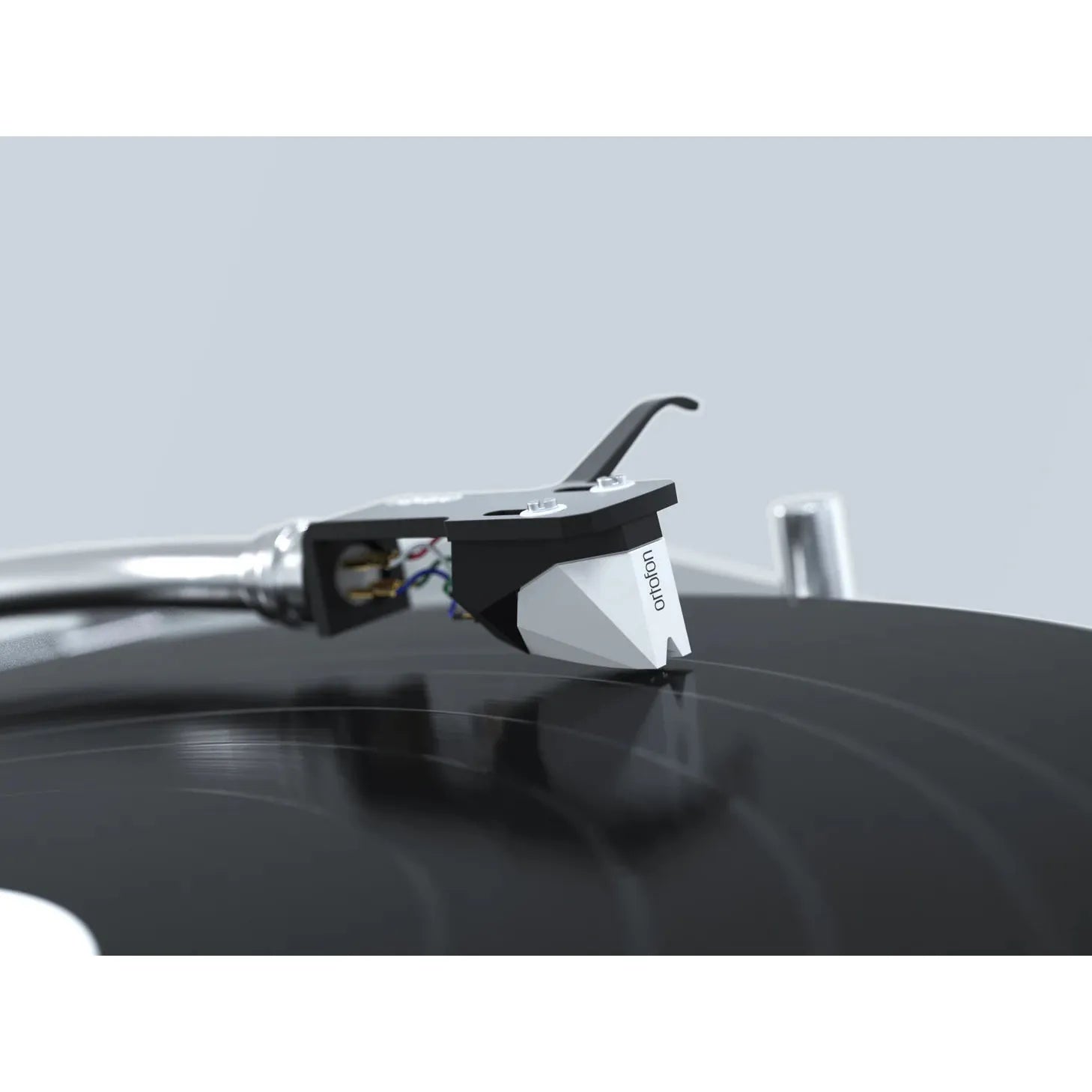

The 2M Mono Premounted is a practical and elegant solution for you who wish direct and easy mounting and replacement on their S-shaped tonearm. The quality of the SH-4 headshell is sturdy and rigid, yet the design emphasizes a slim and delicate form factor. The strong, lightweight headshell has an ergonomic design with a long finger lift that is easy to pick up.

Brings out the best in your mono records

Stylus

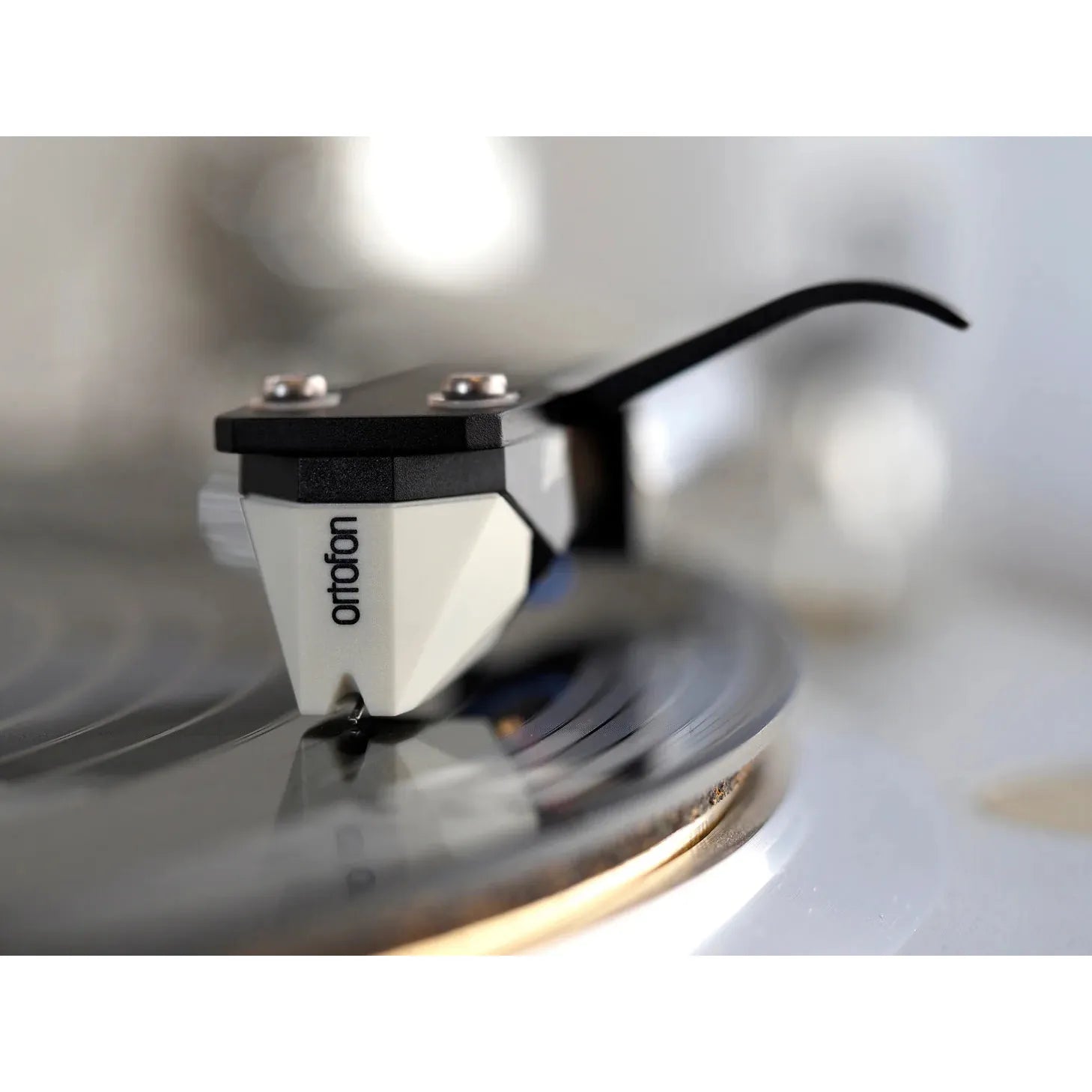

Embark on an elevated mono experience with the 2M Mono Cartridge. Designed to bring out the best in your mono microgroove LP vinyl records, it features a stylus tipped with an R 18µm Nude Spherical diamond. This engineered feature is an optimal solution for playing mono microgroove LP vinyl records and is ideal for achieving exceptional playback quality and capturing the essence of vintage mono soundscapes.

Enjoy true mono

Output

The 2M Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Specifications

  • Output voltage at 1 kHz, 5cm/sec
    4 mV
  • Frequency response 20 Hz - 20 kHz
    3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force
    70 µm
  • Compliance, dynamic, lateral
    18 µm/mN
  • Stylus type
    Nude Spherical
  • Stylus tip radius
    R18 µm
  • Tracking force range
    1.6-2.0 g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    700 Ohm
  • Cartridge colour
    Black/White
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    350 mH
  • Recommended load capacitance
    150-300 pF
UPC: 5705796080360 View full details
