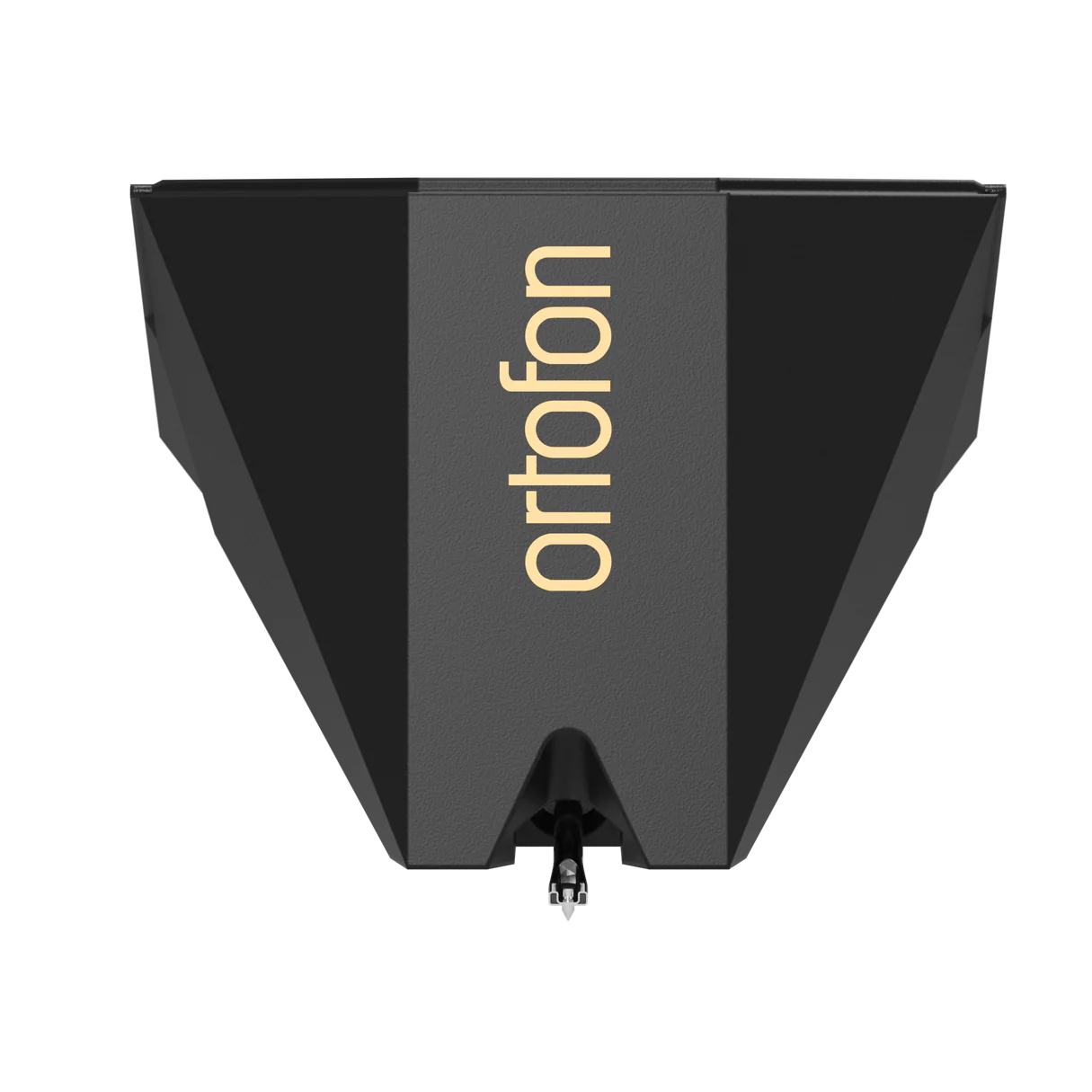

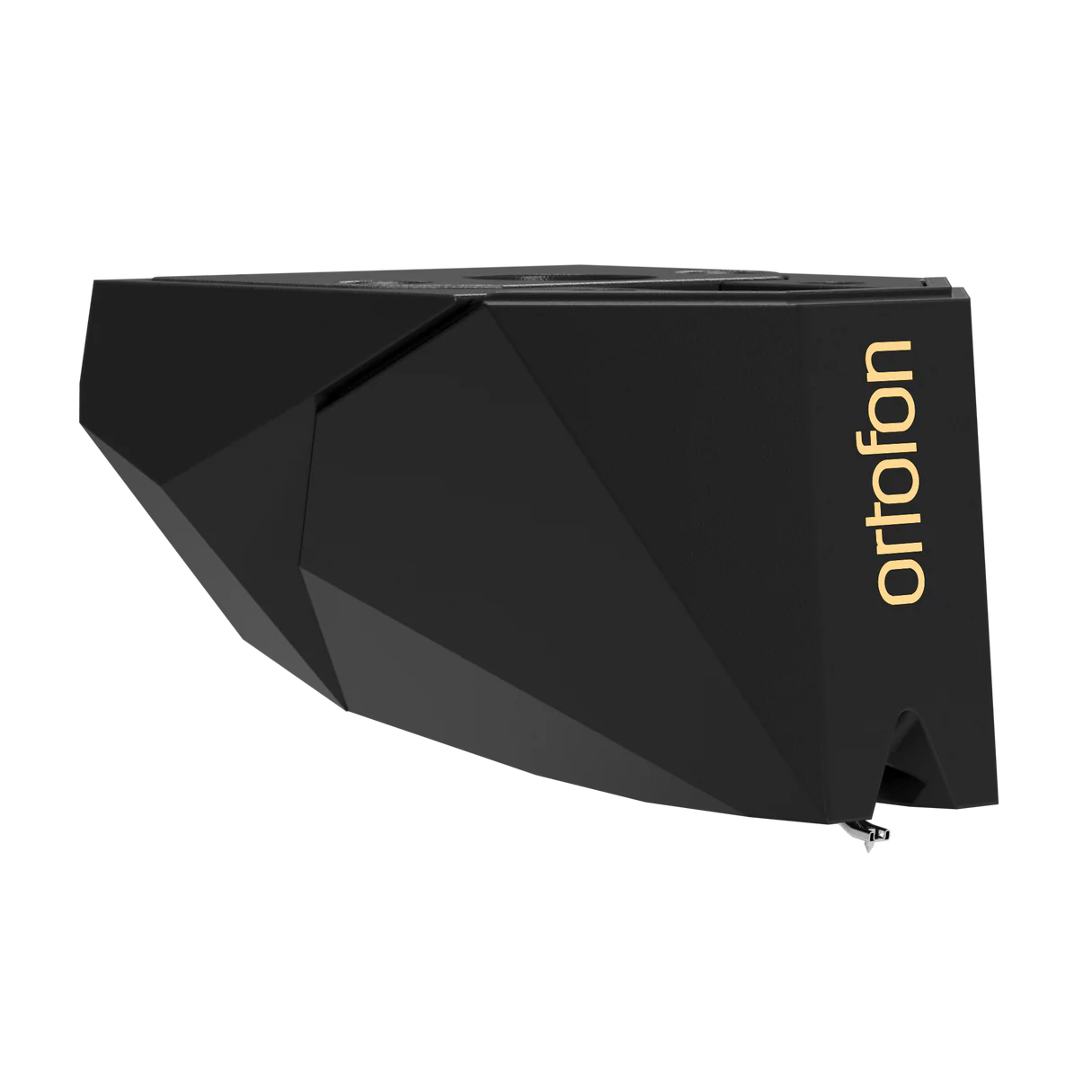

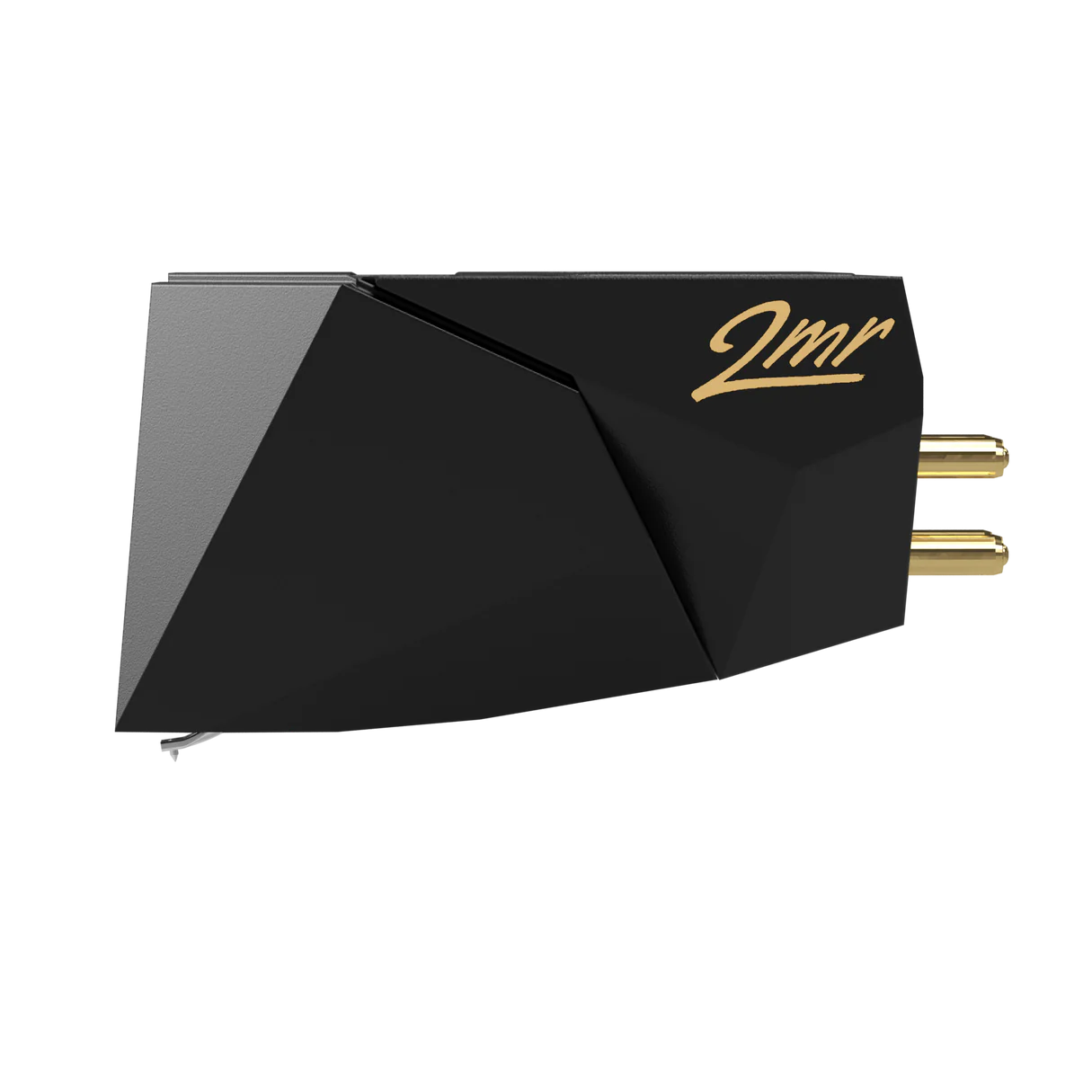

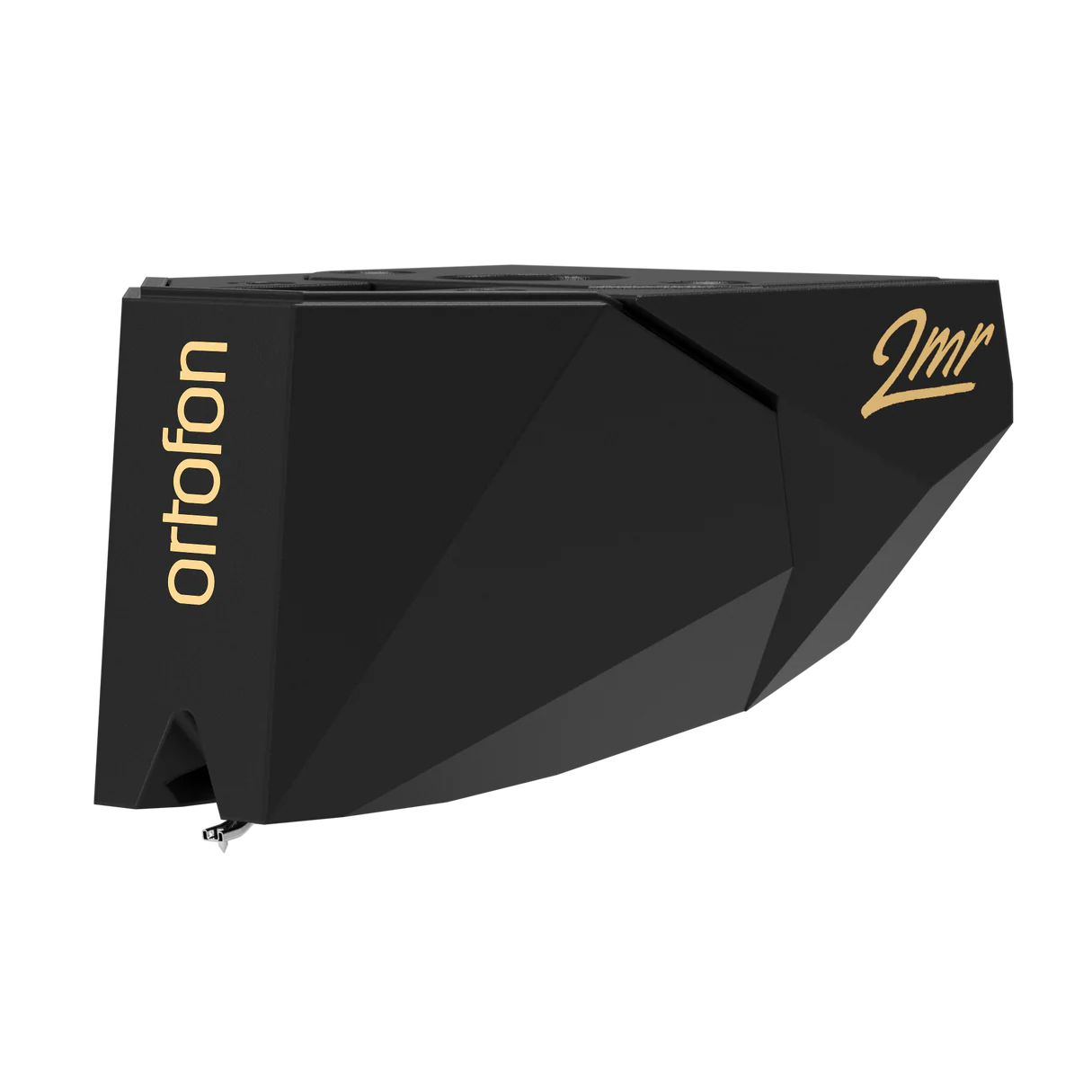

Ortofon - 2MR Black MM Phono Cartridge
Ortofon - 2MR Black MM Phono Cartridge
2MR Black
The Ortofon 2MR series is designed with a newly developed cartridge housing for optimized fitting on low-profile turntables. With its ultra-slim 3mm height reduction, seamless integration is guaranteed. The cartridge's slimline body eliminates the need for spacers or modifications, ensuring quick, easy mounting with just two screws.
Have a Rega turntable or tonearm? Then this one's for you. Built with a specially designed narrow cartridge housing tailored for Rega turntables and tonearms that require low form-factor cartridges, Ortofon 2MR Black MM seamlessly integrates with Rega platforms without any need for modifications or spacers under the tonearm. Best of all, it retains every performance and material characteristic of the original, highly acclaimed 2M Black.
Experience unmatched compatibility with all 2M styli and revel in the high-performance motor system featuring quad coils and split pole pins, exclusive to genuine Ortofon cartridges.
Accuracy level
The 2M Black is the flagship of the series and it lives up to this with flying colors. You can hear every little detail in the music from every part of the spectrum. Just the way the artist wanted you to. With the 2M Black, you will not only hear the music, but you will sense the presence of the artist in the room while listening to your favorite records.
Stylus
The 2M Black is graced with a Shibata diamond that gives it contact with the groove like nothing else. The slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.
Features
The 2M Black features a high-performance motor system with quad coils and Ortofon’s very own invention: split pole pins upgraded with a silver-plated copper wire that makes you feel the presence of the artist in the room when you play your records.
Tailor your listening experience
Additionally, the 2MR maintains the hallmark of interchangeability, allowing you to explore your records in greater depth and detail. Begin your musical journey with the 2M Red stylus, taking your first step into the world of captivating sound. As you delve deeper into your vinyl collection and upgrade to the series, you'll feel the music come alive, experiencing the pinnacle of audio perfection with the 2M Black LVB stylus, where the sound is so precise and detailed that it feels like you've invited the artist into your home.
This seamless transition between stylus profiles lets you tailor your listening experience, ensuring every note is heard with unparalleled accuracy and emotion. The 2MR series empowers you to explore your records like never before, allowing you to savor every moment of your favorite music.
Specifications
- Output voltage at 1000 Hz, 5cm/sec. - 5 mV
- Channel balance at 1 kHz - 1 dB
- Channel separation at 1 kHz - 26 dB
- Channel separation at 15 kHz - 15 dB
- Frequency response - 20-20.000 + 2 / - 0 dB
- Tracking ability at 315Hz at recommended tracking force - 80 µm
- Compliance, dynamic, lateral - 22 µm/mN
- Stylus type - Nude Shibata
- Stylus tip radius - r/R 6/50 µm
- Tracking force range - 1.4-1.7 g (14-17 mN)
- Tracking force, recommended - 1.5 g (15 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 1.2 kOhm
- Internal inductance - 630 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 150-300 pF
- Cartridge colour, body/stylus - Black/Black
- 2MR cartridge weight - 6 g
- 2M and 2M Verso cartridges weight - 7.2 g
- 2M Premounted cartridge weight - 16.7 g
