Ortofon - Concorde Music Red MM Cartridge
Ortofon - Concorde Music Red MM Cartridge
Premium Moving Magnet cartridge

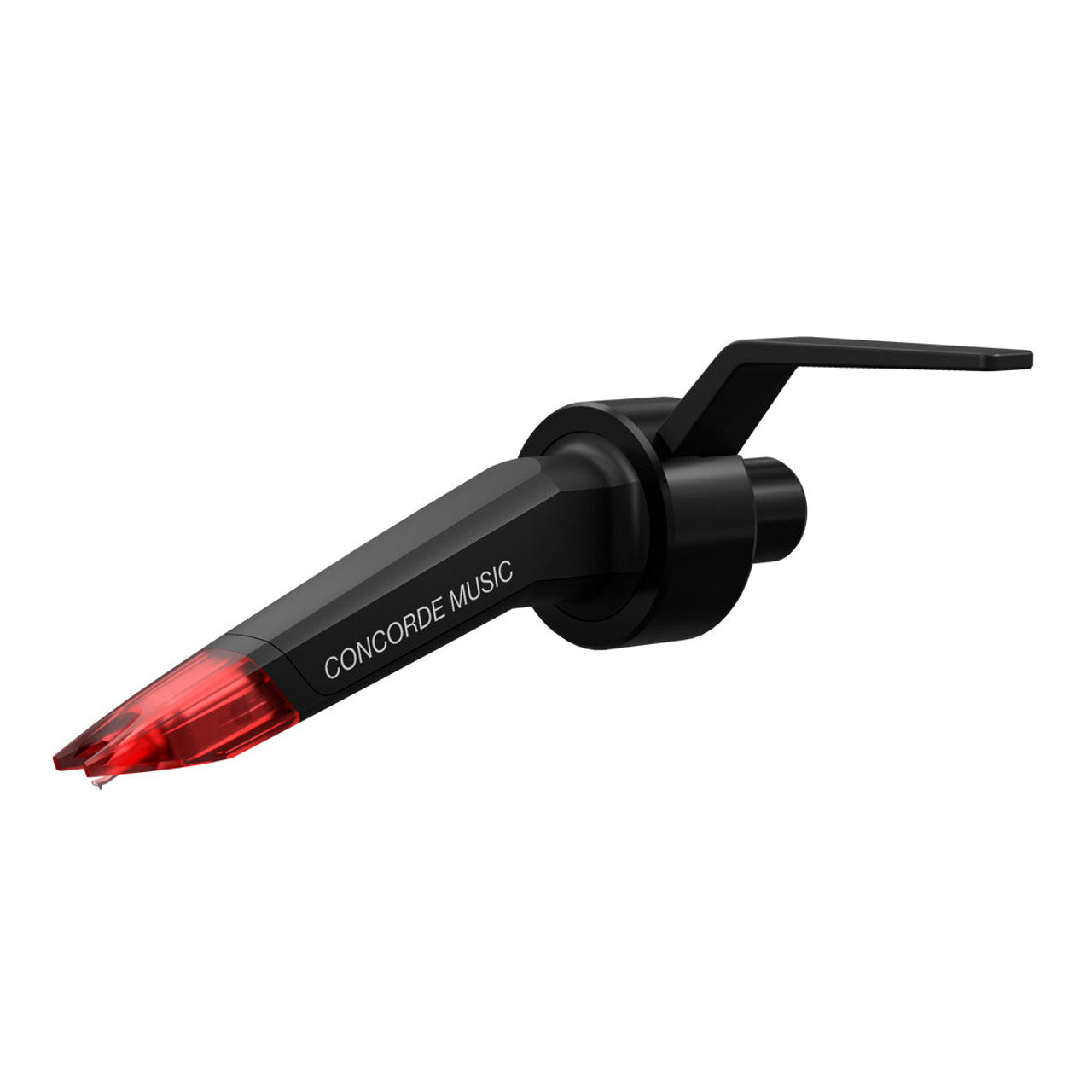

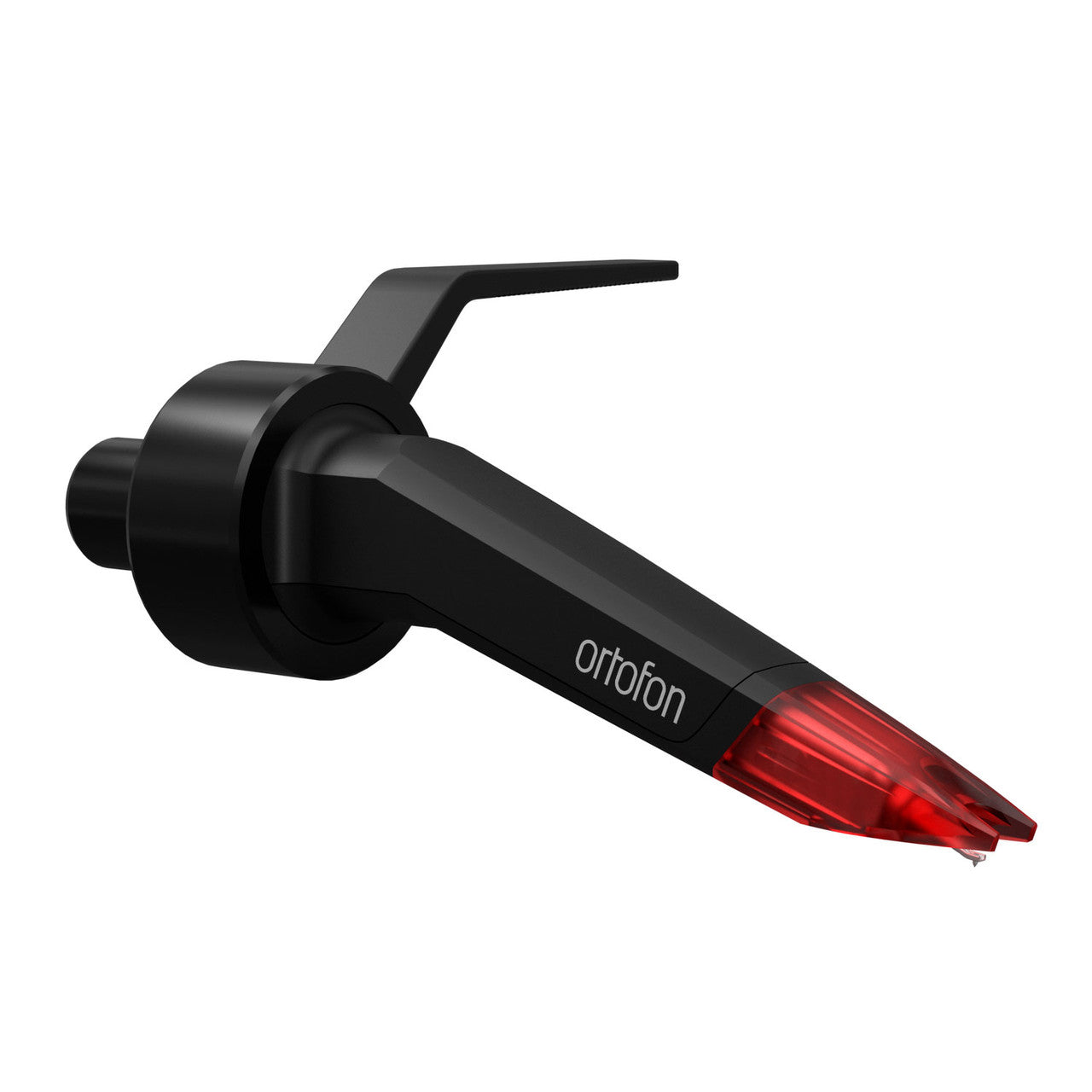

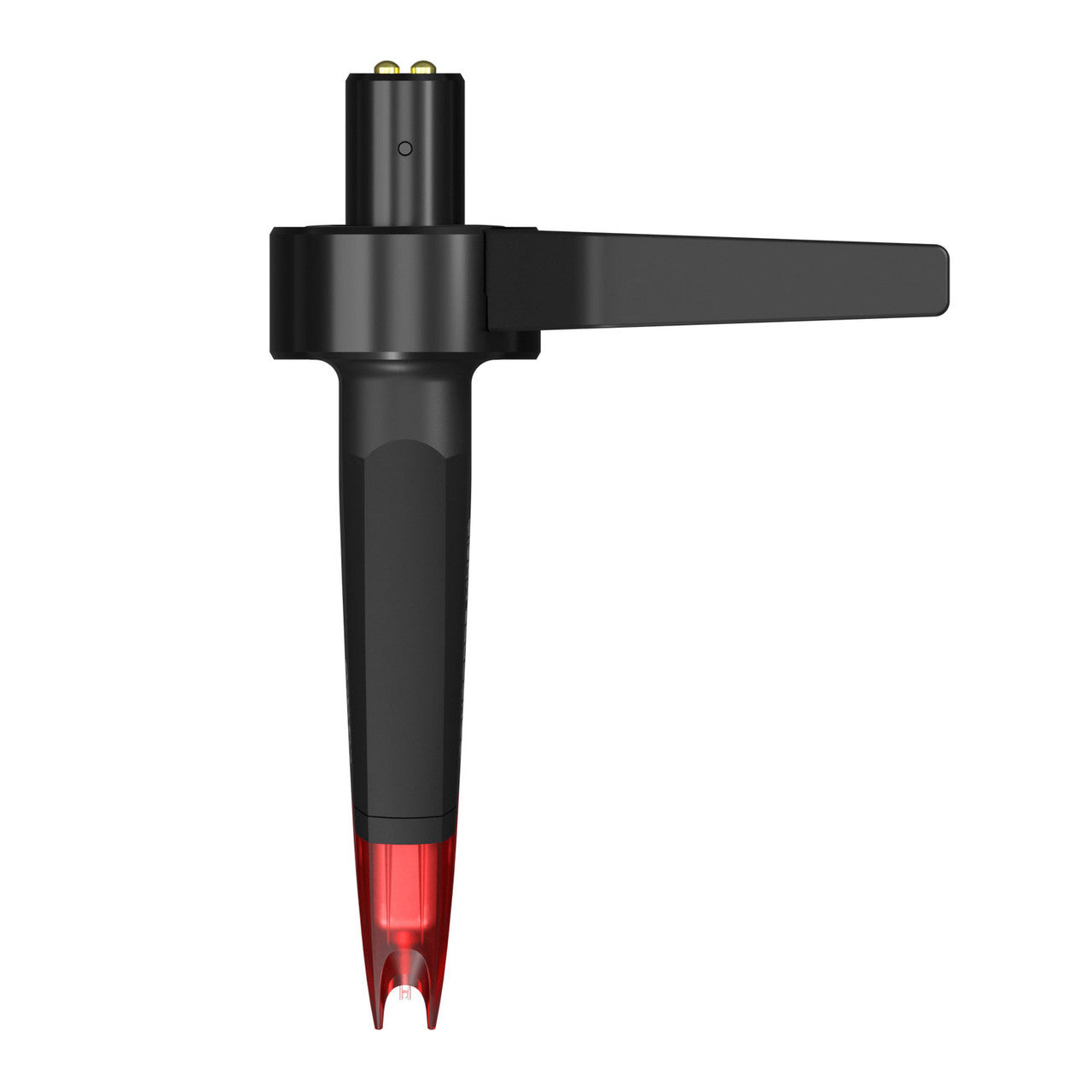

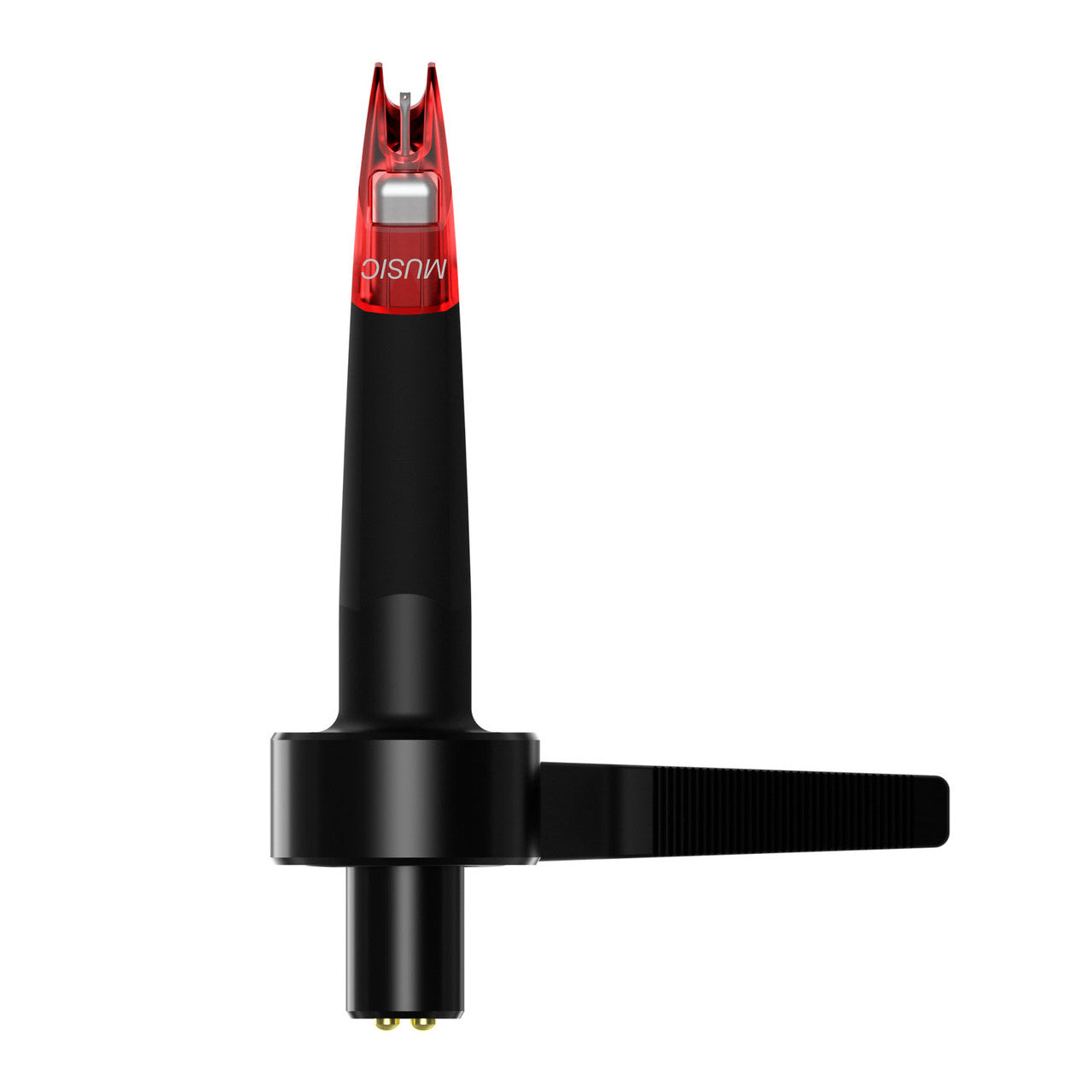

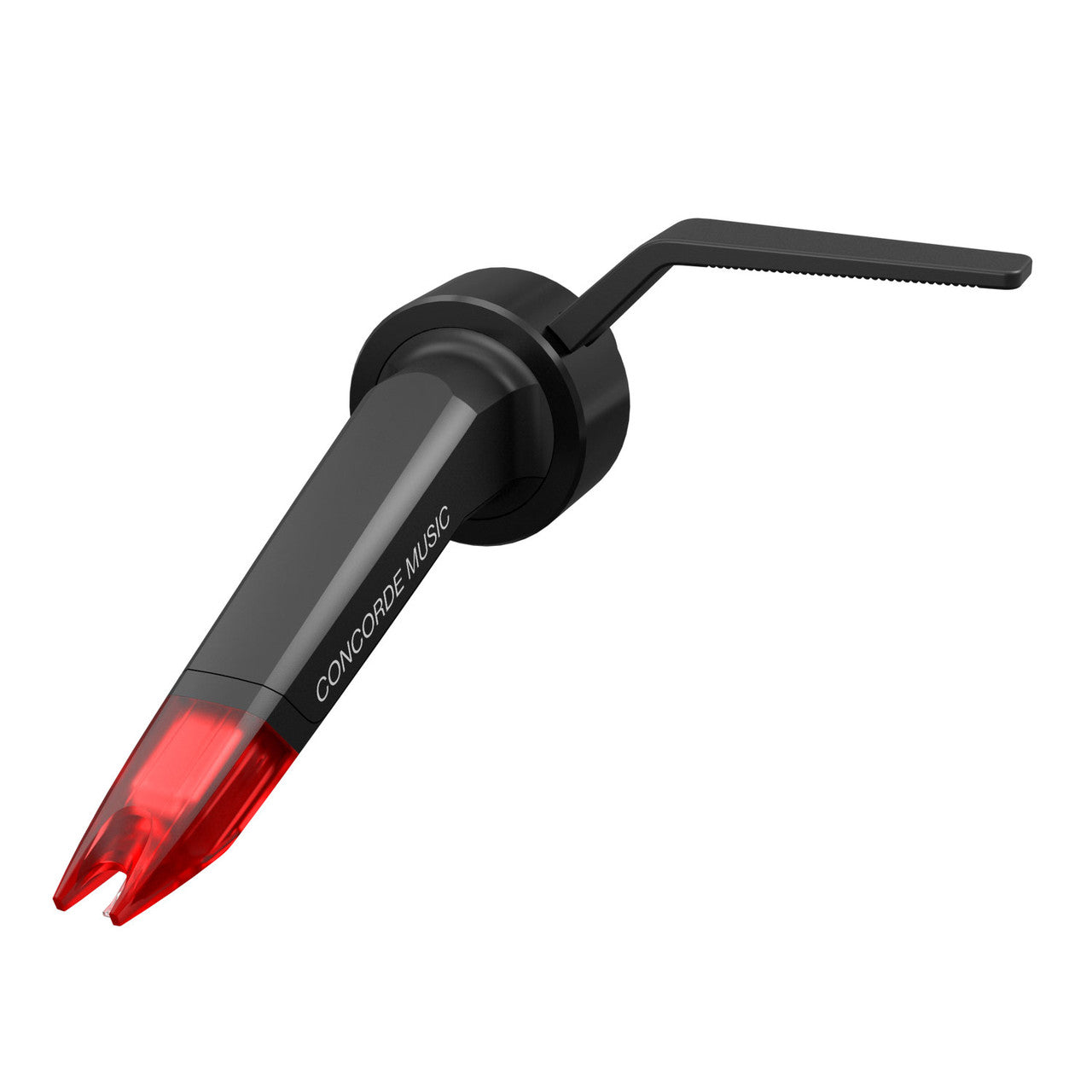

Concorde Music Red
Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.
The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.
Award winning cartridge design
Iconic design
Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio.
Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in
the audio industry.
Precision in every groove

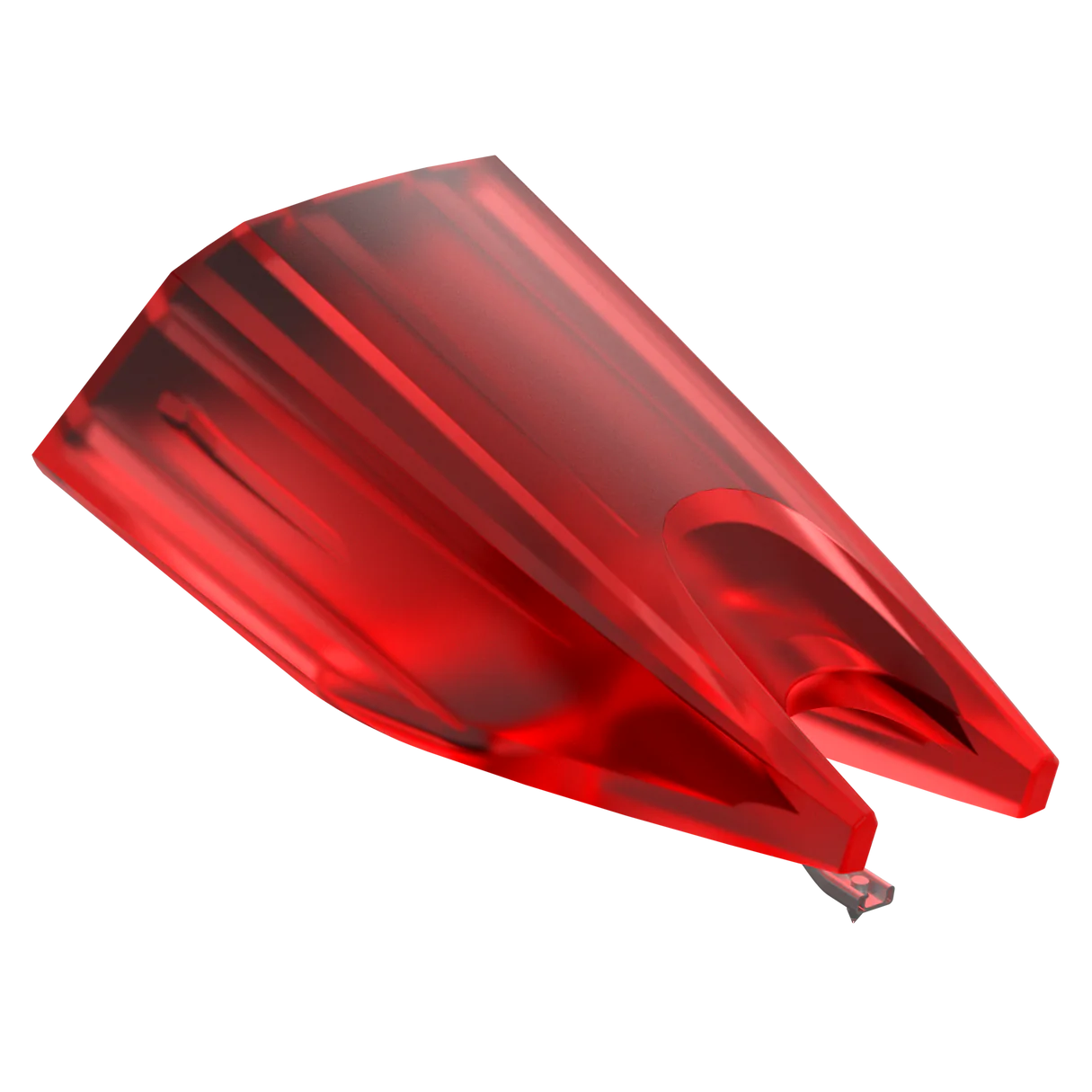

Stylus
The Concorde Music Red features an Elliptical diamond polished to the highest standards of the industry, mounted on a premium aluminum cantilever. This ensures the best possible transmission of the vinyl record groove modulations picked up by the diamond.
Unique in-house rubber production
Rubber suspension
The Concorde Music Red utilizes an exclusive Ortofon rubber compound for its stylus suspension. Developed and produced in our unique in-house rubber production, this suspension is a crucial and vital component contributing to the overall performance of the phono cartridge.
Easy mount and upgrade path
Compatibility
Installing the Concorde Music cartridge on your turntable is easy and straightforward; no tools are required, making it hassle-free and convenient for all users. This is thanks to the bayonet/SME connector, which makes it compatible with all S-shaped tonearms.
Full upgrade path
Upgradeability
The Concorde Music Red can be upgraded with all Concorde Music styli, enabling an upgrade path throughout the entire series up to the Concorde Music Black LVB 250.
Upgrading the stylus is a simple task; simply pull the stylus off and replace it with the new one. Remember to keep the stylus guard on when installing the new stylus to keep the needle safe.
Specifications
-
Channel balance at 1 kHz1.5 dB
-
Output voltage at 1 kHz, 5cm/sec6mV
-
Channel seperation at 1 kHz22 dB
-
Channel seperation at 15 kHz15 dB
-
Frequency response 20 Hz - 20 kHz+3 / -1 dB
-
Tracking ability at 315Hz at recommended tracking force80 µm
-
Compliance, dynamic, lateral15 µm/mN
-
Stylus typeElliptical diamond on Aluminium cantilever
-
Stylus tip radiusr/R 8/18 µm
-
Tracking force, recommended1.8 g
-
Tracking angle20°
-
Internal impedance, DC resistance1.27 kΩ
-
Cartridge colourBlack/Red
-
Cartridge weight18 g
-
Recommended load resistance47 kΩ
-
Internal inductance815 mH
-
Recommended load capacitance150-300 pF
