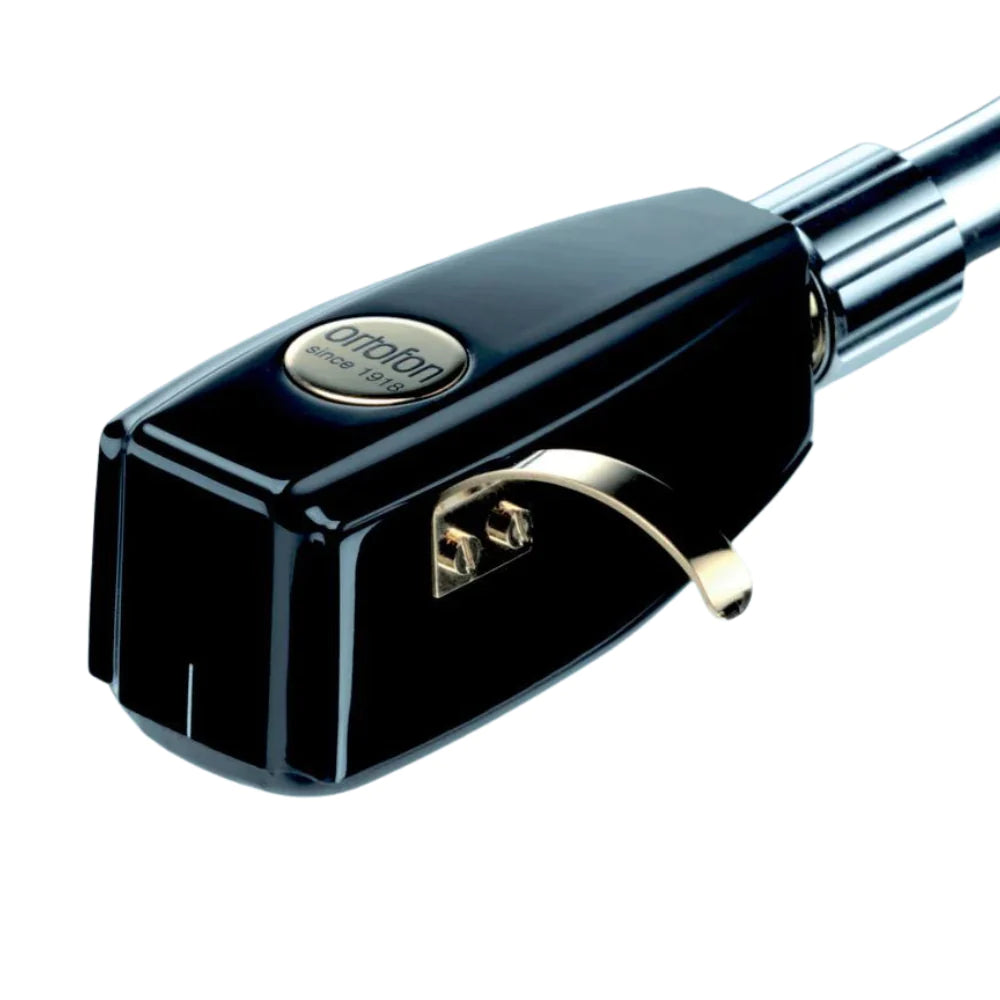

Ortofon SPU Royal G MKII Moving Coil Phono Cartridge

Ortofon SPU Royal G MKII Moving Coil Phono Cartridge

$2,819.00 USD
$2,819.00 USD
Sale Sold out
Shipping Policy.

The SPU Royal G model was released in 1998 to celebrate the Ortofon 80 year anniversary

SPU Royal G MKII

The SPU Royal G MkII provides a playback experience that embodies the essence of analog with generous refinements which bring the legendary SPU cartridges into the realm of unrivaled perfection.

Features

The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.

Electrum coils, consisting of a gold and silver alloy, provide uncolored and precise transmission of armature movements, while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.

Specifications

  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    0.2 mV
  • Channel seperation at 1 kHz
    25 dB
  • Channel seperation at 15 kHz
    20 dB
  • Frequency response 20 Hz - 20 kHz
    1.5/- 0 dB
  • Tracking ability at 315Hz at recommended tracking force
    60 µm
  • Compliance, dynamic, lateral
    8 µm/mN
  • Stylus type
    Nude Ortofon Replicant 100
  • Stylus tip radius
    r/R 5/100 µm
  • Tracking force range
    2.5-3.5 g (25-35 mN)
  • Tracking force, recommended
    3.0 g (30 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    7 ohm
  • Recommended load impedance
    100 ohm
  • Coil wire material
    Goldplated silver
  • Cartridge body material
    Ground wood and resin composite
  • Cartridge colour
    Shiny black
  • Cartridge weight
    28 g
UPC: 5705796240276 View full details
