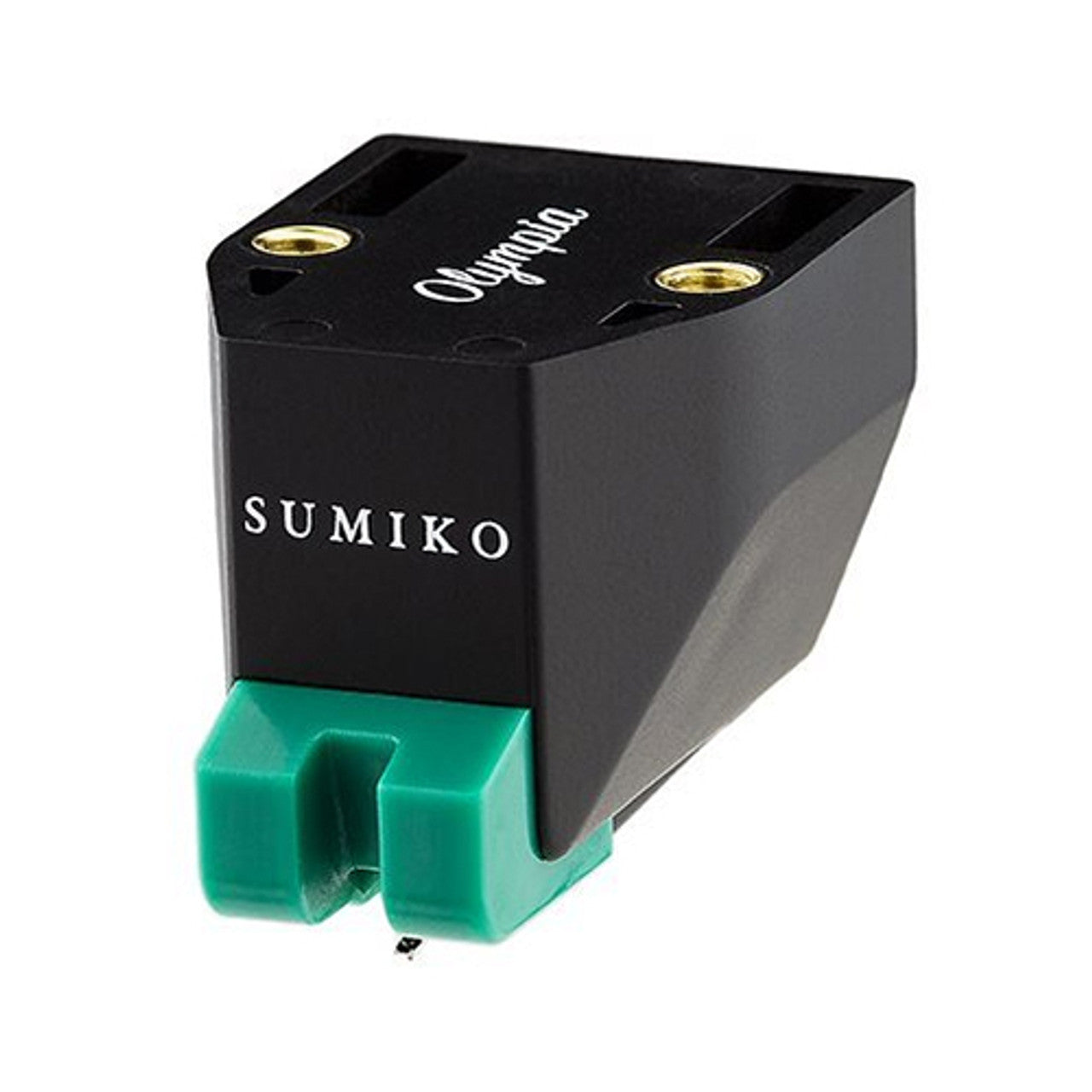

Sumiko - Olympia MM Phono Cartridge

Sumiko - Olympia MM Phono Cartridge

Regular price $199.00 USD
Regular price Sale price $199.00 USD
Sale Sold out
Shipping Policy.

Next-Gen Moving Magnet Phono Pickup

Building on Rainier, Olympia implements an upgraded cantilever assembly that reduces moving mass, translating to more nimble groove tracing, extended nuance and expanded frequency response. A slight decrease in output from Rainier reduces noise in an already-quiet design, improving imaging and perpetuating realism that’s rare to come by in this class of cartridge.

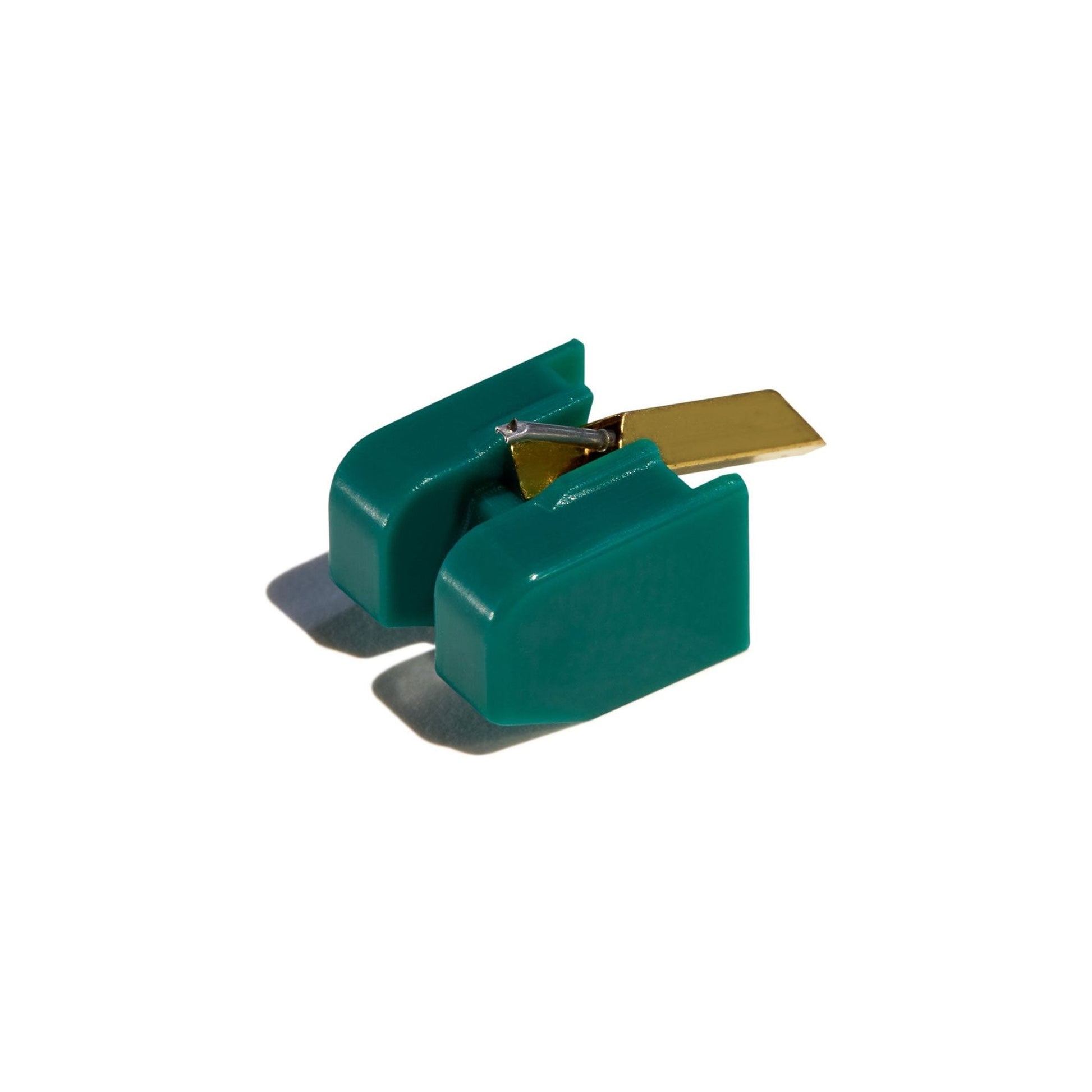

The Olympia brings another level of acoustic refinement to the mix with an upgraded stylus and cantilever assembly, allowing for more dynamic punch and improved frequency response during playback. Due to its improved tracking capabilities, the Olympia is an excellent return on investment when upgrading from the Rainier cartridge, and can even be upgraded to the capable Moonstone stylus further on down the line.

Specifications:
Cartridge Type: Moving Magnet
Stylus: 0.3 x 0.7 micron Elliptical
Cantilever Material: Aluminum
Wire Material: Copper
Internal Impedance: 1,130 Ohms
Load Impedance: 47 kOhms
Frequency Response: 12Hz - 30kHz
Output Voltage: 4mV @ 1kHz
Channel Separation: 30dB @ 1kHz
Channel Balance: 1.5dB @ 1kHz
Compliance: 12x10-6 cm/dyn @ 100Hz
Recommended Load Capacitance: 100pF - 200pF
Vertical Tracking Angle: 20 degrees
Tracking Force: 1.8g - 2.2g
Recommended Force: 2.0g
Cartridge Weight: 6.5g

UPC: 844682008233 View full details
